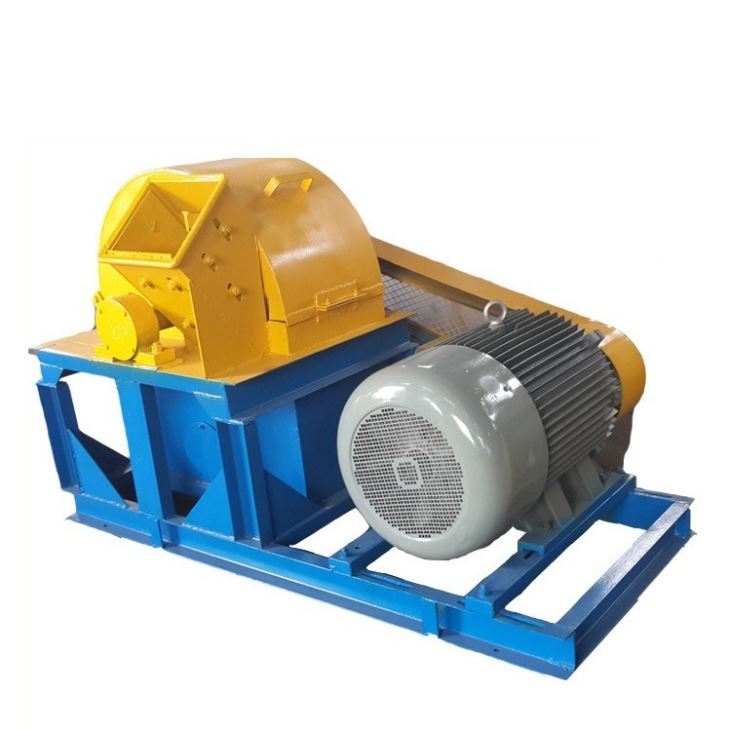

Wood Sawdust Machine
Wood Sawdust machine is an ideal crusher for industries such as chemical industry, building materials, medicine, health care, breeding, food, mosquito coils and so on.
Send InquiryWood Sawdust machine is an ideal crusher for industries such as chemical industry, building materials, medicine, health care, breeding, food, mosquito coils and so on. An popular Wood Sawdust machine for making wood pellets,wood charcoal, and cultivation mushroom etc.(Note that wood shredders are not suitable for crushing of inflammable and explosive materials)
Feature
●Compact structure and considerable layout;
●Wood Sawdust machine can equipped with wheels.move around.
●Crushing wood into 1-40mm ,size adjustable at option.
●Easy to install,operate and maintain;
●Product good quality sawdust size can be adjusted by changing screen(sieve);
●Can Install the wheels, Cyclone and make other customized designs for customers;
●Can use electrical motor/diesel motor according to customer's needs;
●Less space occupying,high production efficiency,low investment,high profit return.
Technical Index
Model No. | H420 | H600 | H800 | H1000 |
Disc Dia.(mm) | 400 | 600 | 800 | 1000 |
Speed(r/min) | 2600 | 2600 | 2300 | 2000 |
Knives (pcs) | 4 | 4 | 6 | 4-6 |
Feeding size (mm) | 150*180 | 200*200 | 250*300 | 300*300 |
Output(kg/h) | 300-600 | 800-1000 | 1500-2000 | 2000-3000 |
Motor power(kw) | 7.5-11 | 18.5-22 | 30 | 75+7.5 |
Weight(kg) | 350 | 400 | 1500 | 1800 |
Dimension( m) | 1.2*0.85*0.9 | 1.5*1.0*1.1 | 2.1*1.1*1.3 | 2.6*1.1*1.5 |
Application
1.The base material of edible fungus/edible mushroom cultivation;
2.Production of biomass fuel pellet/wood charcoal;
3.Medium and small particleboard and fibreboard production: Particleboard, plywood, high density board, sawdust board, MDF, etc.;
4.Mosquito-repellent incense making;
Raw Material
Wood Sawdust machine suitable for the crushing of the following materials: bamboo powder, husk, Chinese herbal medicine, bark, leaves, wheat bran, konjac, black stalk, rice husk, corn cob, straw, starch, grain, shrimp skin, fish meal, Shell, seaweed, dehydrated vegetables, hawthorn, dried ginger, garlic slices, pumpkin powder, seasoning, jujube, paper, circuit board, plastic, chemical raw materials, seawater products, condiments, feed, mica, graphite, bentonite, perlite, Distillers grains, furfural, cakes, charcoal, activated carbon, cellulose, potato dregs, tea, hair, soybean meal, cotton, refined cotton, cowhide, sheepskin, plant roots, stems, leaves, flowers, fruits, various edible fungi, etc.
Usage of Final Product
●The base raw material for cultivated edible fungus/Edible mushroom cultivation;
●Production of biomass fuel pellet/wood charcoal:
●For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas
●Medium,small particleboard and fibreboard production:
●Particleboard, plywood, high density board, sawdust board, MDF, etc.
●Mosquito-repellent incense making;
●Paper making raw material.
Our Services
●Pre-sales service
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1. Enough details about the materials shall be learned, sometimes a test is needed for some materials.
2. Equipment of right model is selected for customers.
3. Customized Wood Sawdust machine and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
●On-sales service
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
●After-sales service
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4. If any failure or question about the machines or the processing line, contact us and we are available at any time.
