Flat Die Pellet Mill

The flat die wood pellet machine is the longest history during all the wood pellet machines. And it is also the most common pellet machines in the market. It is known for the simple structure stability, raw materials adaptability, output large output range etc.

There are two kinds of Flat Die Pellet Mill in the market, one is the flat die rotary, the other is the roller rotary. However these two kinds of machines are fit for different kinds of raw material:
The first type of flat die rotary flat die pellet machines, we also called it the feed pellet machines. We will give detail explanations in the small pellet machines.

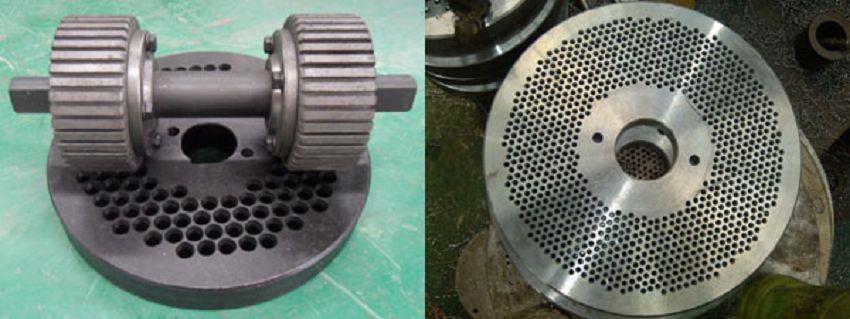

The second type is the roller rotary flat die pellet machines, we also called it the wood pellet machines. The flat dies are fixed, but the rollers are rotary, so that the flat die can stand much more power. So it can stand some more powerful pressure, fit for the light raw material, such as wood sawdust, corns, stalks, husk etc.

Feature

1. Powered by both diesel engine ,gasoline and motor,PTO driven

2. Direct Connection of motor shaft and belt drive

3. Can run smoothly with few noises.

4. Pellet Machine can equipped wheel,move around

5. Machine can be used for making feed pellet,also make wood pellets

Type

Flat Die Pellet Mill

Warranty:12 months

Application:animal/poultry/livestock feed processing

Raw material:corn, soybean, wheat, rice husk, maize stalk etc.

Function:Producing Animal Feeds Pellets

Advantage:high efficient, low power consumption, good quality

Pellet size:2-10mm

Related machine:crusher, mixer, pellet machine, cooler, packing machine and conveyor



Data Parameter

Type	Power	Capacity(kg/h)	Dimension(mm)	Weight(kg)
PL-120	8HP	60-100	730*320*670	135
PL-120B	3KW	60-100	750*310*620	100
PL-150	8HP	100-200	760*430*710	150
PL-150B	4KW	150-220	770*340*680	115
PL-200	15HP	220-350	1180*560*1020	360
PL-200B	7.5KW	200-300	1000*430*950	210
PL-230	11KW	300-400	1150*500*970	320
PL-260	15KW	400-600	1200*500*1030	370
PL-300	22KW	600-800	1320*530*1070	480



Attentions of operation

1. The operators should read the instructions carefully and have good understanding of the character of the Flat Die Pellet Mill, structure and application method. Stall and debug, use and maintain the pellet mill according to regulations.

2. Before connect the power supply, examine the ground cable is fine or not at first. Connect to the power of the machine and start the pellet mill are serious prohibited before connected the ground cable

3. Don’t inspect or replace the spare parts with the live cables, or the operators can get a shock or injured.

4. Be sure to stop the pellet mill when the service man maintain the pellet mill, and cut off all the electricity supply and hang on the warning sign, to prevent human error accident from unexpected operation of machine.

5. Special lubricant should be added into the bearing of compression rollers of the pellet mill after every 12 hours of the operation of the pellet mill.

6. Please do cut off the electricity when rotating the compression rollers by hand. Please do not touch the rotating compression rollers and flat die by hand or other objects.

7. The clearance between the compression rollers and the flat die should below 10.mm, too small the clearance give rise to over wear resistance between compression rollers and flat die, even the damage of the whole pellet mill.

8. When the temperature of the Flat Die Pellet Mill is below 10℃, the lubricant of the pellet mill are easy to freeze. Please warm the Flat Die Pellet Mill to 10℃ and start the machine.

FAQ

How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.

How about price?
Yes, we are factory and be able to give you lowest price below market one, and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.

Welcome to visit our factory!

We will provide you our best equipments at the reasonable price to meet your requirements.
