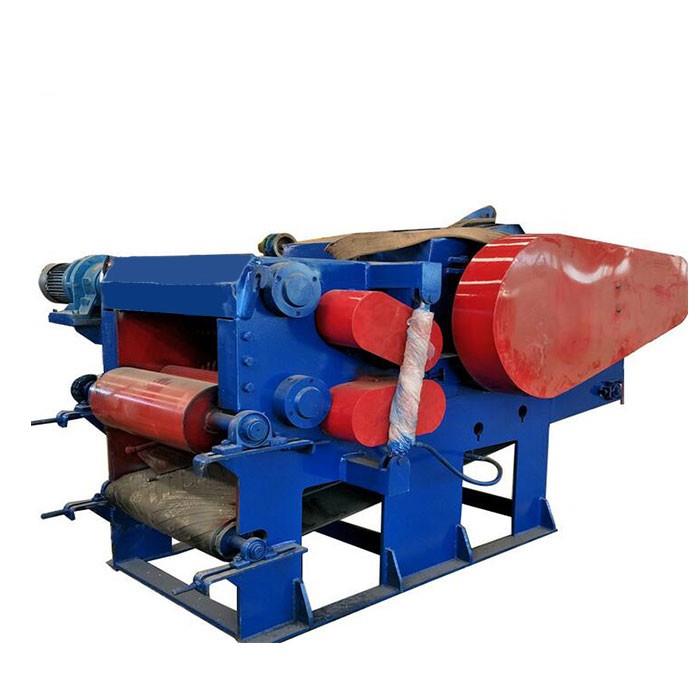

Drum Chipper

Wood drum chipper is suitable for chipping particle board, density beaver board, wood fiber board, widely used in paper-making factory, power plant and industrial boiler…etc.

Structure

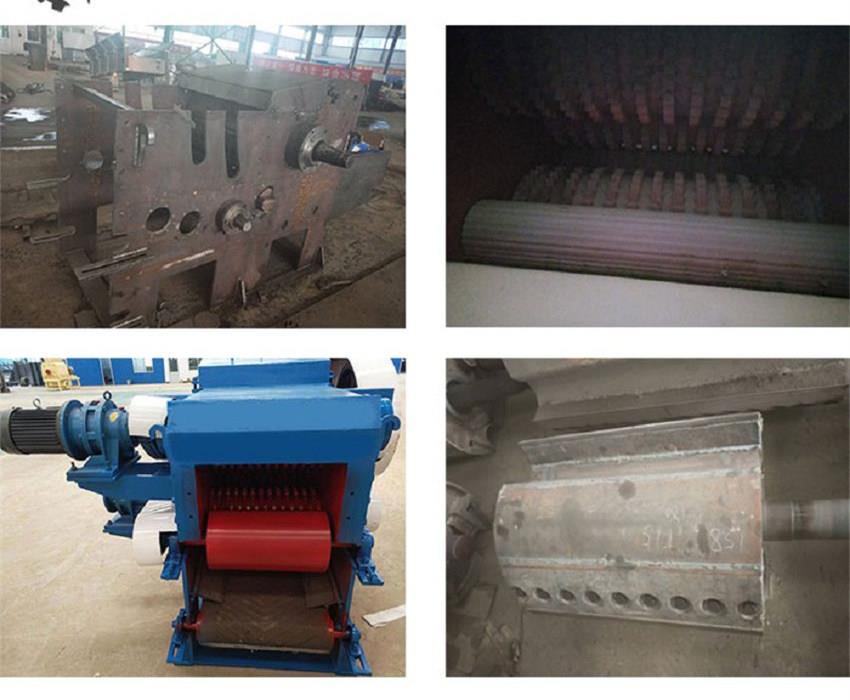

●Drum chipper consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system and other parts.

●The frame is made of high strength steel plate welding and become, is the support of the drum chipper basis;

●The fly knives fixed on the roller, by special bolts which special designed for fly knives, according to the different thickness of raw material, the top feed mechanism could be adjusted automatic; the small chips drop through screen, the large size material will stay inside machine and get chipped again.

●The hydraulic system designed to be refill by manual operation, so that the cover shell of machine could be opened, easier for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.

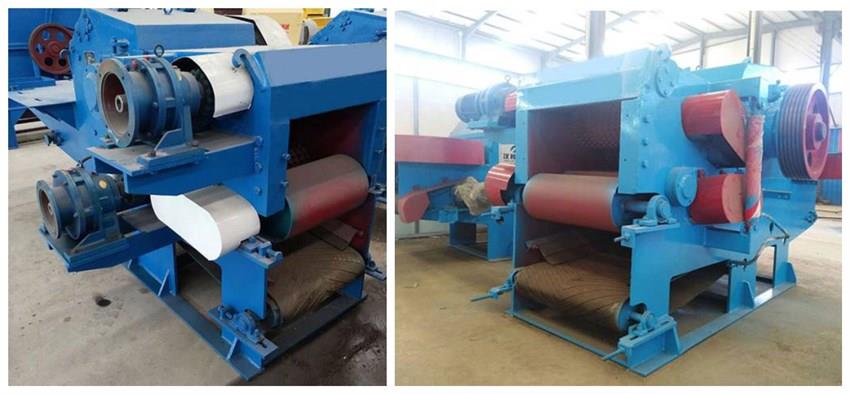

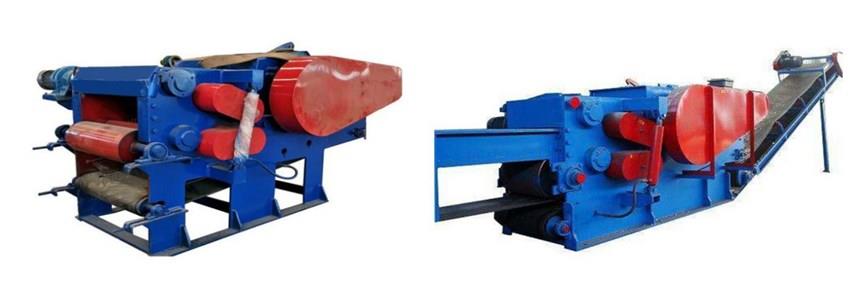

The drum chipper is made up of body, knife roller, the upper and lower feed roller, conveyor belt, hydraulic system.The machine adopts high strength steel plate welded together, is the supporting basis of the whole machine. Install two or three, four throwing knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block.

According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom; large wood chips will be cut within the machine.



Technical Parameter

Model	DX215	DX216	DX218	DX2113
Blades (pcs)	4	4	4	4
Feed mouth size	180*400mm	240*500mm	310*680mm	500*700mm
Rotary speed(RPM)	592	590	650	500
Max size	160 mm	200 mm	300 mm	450 mm
Chip length(mm)	30	30	30	30
Capacity	3-4t/ht/h	6-8t/h	8-15t/h	15-25t/h
Main Power	45kw	55kw	110kw	220kw
Feed roller power	2.2 kw*2	3 kw*2	4 kw*2	7.5 kw*2
Weight(KG)	2990	4070	7200	13200
Size(mm)	1540*1240*1020	1980*1950*1250	2200*2150*1500	3670*2445*2050

We can customize all kinds of high quality wood chipper according to your requirements!  Including diesel wood chipper, movable wood chipper, branch wood chipper, wood log wood chipper etc.

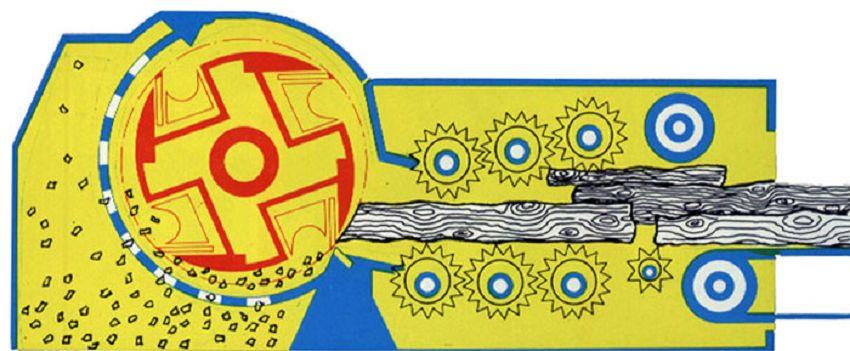

Working Principle

Drum wood chipper is made up of six main parts: seat, cutter roller, upper and down feeding roller, conveying device, hydraulic pressure system, electric control system etc.The wood logs go into feeder, when wood logs meet the blades, it will be cut by the high rotating speed of blade. The wood chips will be unloaded by the high speed airflow.

Application of the final products

●Organic fertilizer: free decay into surface can be formed a good organic fertilizer.

●Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive

●Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.

●Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.

●It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .

Our service

1. Help you to choose the most suitable machine.

2. Make optimal design and layout according to clients raw material and capacity request.

3. Make booking for shipment from AINUOK factory to clients factory.

4. Supply details information and video of the machine for you .

5. Normally the service life of our machines can be 5-8 years.

6. We offer full set of wearing parts and tools for backing up.

7. We may appoint our engineer go abroad to train you how to operate the machine If you are interested, welcome to inquiry us!



Advantages we have

1.24 Hours Online Service.

2.Inquiry will be replied within 2 hours.

3.All-the-way tracking service offered from placing order to delivery.

4.Free training for operation, debugging and daily maintenance.

5.We can provide professional guide installation.

6.One year warranty and all-round after-sales service.

7.Customized design and flow chart are available for our clients.

8.Independent R&D team and strict & scientific management system.
