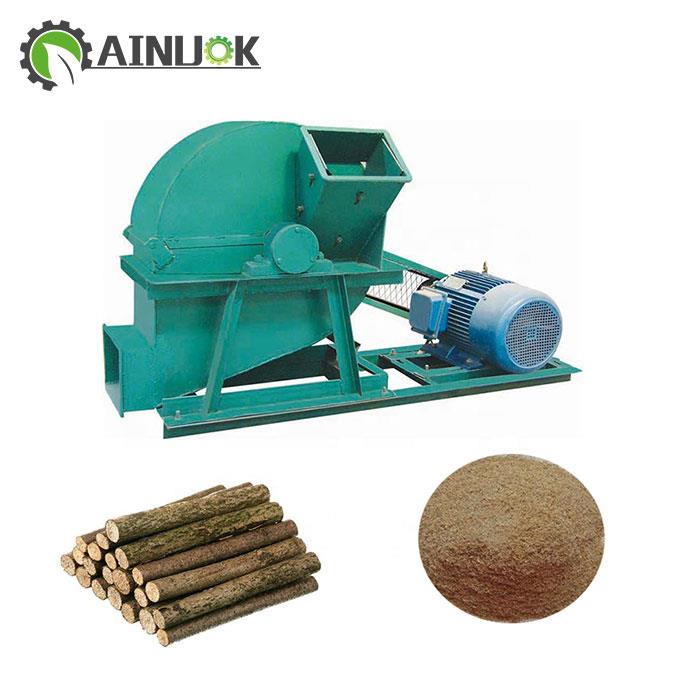

Wood Sawdust Crusher
Wood Sawdust Crusher is one of the wood crushing equipmen, it is a special equipment for the production of wood flour (sawdust).
Send InquiryWood Sawdust Crusher is widely used in papermaking, edible fungi, mechanism charcoal, particle board, sawdust board, high-density board, medium-density fiber board and other industrial production preparation sections and single wood flour (sawdust) production base.
Features:
1.Stable and reliable system in work.
2.Low energy consumption with high efficiency.
3.Reasonable structure design, easy to operation and use.
4.Durable blades with high precise and super sharp

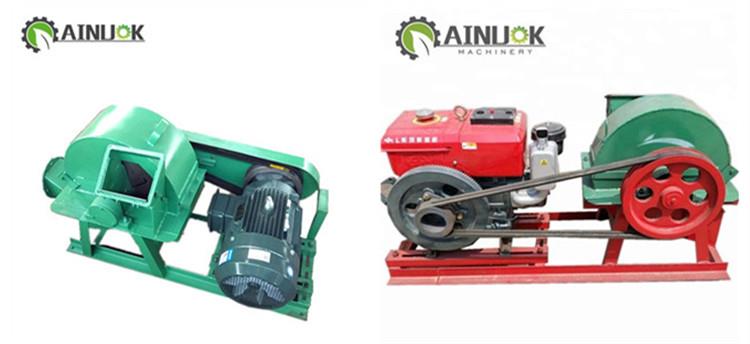

5.Can install wheels, cyclone and make other customized designs for customers
Model No. | H420 | H600 | H800 | H1000 |
Disc Dia.(mm) | 400 | 600 | 800 | 1000 |
Speed(r/min) | 2600 | 2600 | 2300 | 2000 |
Knives (pcs) | 4 | 4 | 6 | 4-6 |
Feeding size (mm) | 150*180 | 200*200 | 250*300 | 300*300 |
Output(kg/h) | 300-600 | 800-1000 | 1500-2000 | 2000-3000 |
Motor power(kw) | 7.5-11 | 18.5-22 | 30 | 75+7.5 |
Feed Dia.(mm) | 40 | 60 | 100 | 150 |
Weight(kg) | 350 | 400 | 1500 | 1800 |
Dimension( m) | 1.2*0.85*0.9 | 1.5*1.0*1.1 | 2.1*1.1*1.3 | 2.6*1.1*1.5 |
Applicable Raw Materials:
All kinds of wood, timber scraps, tree branches, wood chips, edge material, tree bark, bamboo, waste wood, coconut shell, corn stalk, wood board, wood stick, wood scrap and other material which can be crushed into sawdust.
Usage of Sawdust:
1.Paper making
2.Wood factory
3.Edible fungus and mushroom cultivation
4.Production of biomass fuel pellet or wood charcoal
5.Suitable for biomass power plant, forest farm, garden plant etc
6.Use in particle board, sawdust board, high density board, medium density fiberboard
