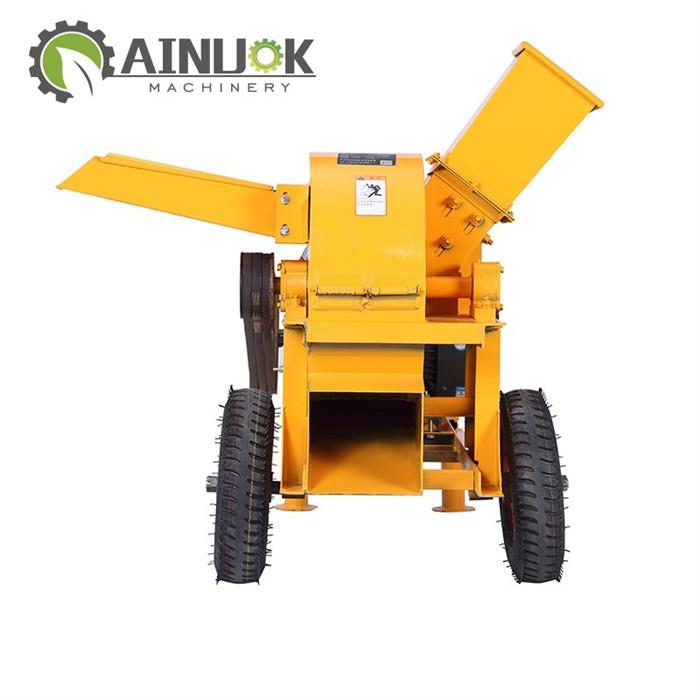

Mobile Wood Crusher
Mobile wood crusher with two feed inlets, can crushe different size of raw material less than 250mm into sawdust size at 1-40mm.
Send InquiryMobile wood crusher with two feed inlets, also called wood grinder, wood pulverizer, can crushe different size of raw material less than 250mm into sawdust size at 1-40mm for making pellets, wood briquette, growing mushroom etc.
Features:

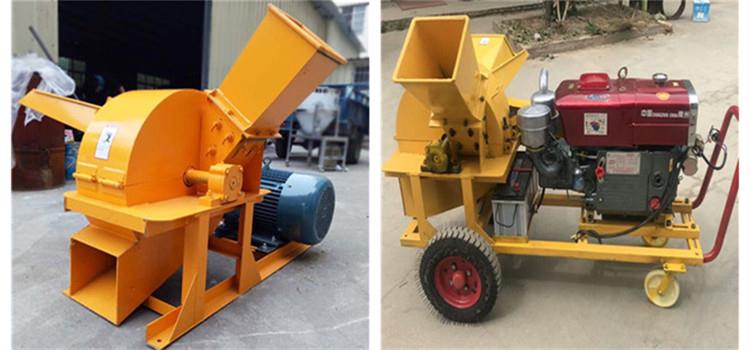

1.Flexible power option: Electric motor, Diesel engine, Mobile
2.Simple and compact structure, low cost of processing
3.Fineness of the sawdust can be adjusted and adjusted by changing screen
4.Wood crushing equipment occupies little room, which makes it popular in small size biomass fuel plants.
5.Blade cutting, high-speed airflow impact and collision crushing functions, can simultaneously complete the micro-material sorting and processing procedures.
Technical Index
Model No. | H420 | H600 | H800 | H1000 |
Disc Dia.(mm) | 400 | 600 | 800 | 1000 |
Speed(r/min) | 2600 | 2600 | 2300 | 2000 |
Knives (pcs) | 4 | 4 | 6 | 4-6 |
Feeding size (mm) | 150*180 | 200*200 | 250*300 | 300*300 |
Output(kg/h) | 300-600 | 800-1000 | 1500-2000 | 2000-3000 |
Motor power(kw) | 7.5-11 | 18.5-22 | 30 | 75+7.5 |
Feed Dia.(mm) | 40 | 60 | 100 | 150 |
Weight(kg) | 350 | 400 | 1500 | 1800 |
Dimension( m) | 1.2*0.85*0.9 | 1.5*1.0*1.1 | 2.1*1.1*1.3 | 2.6*1.1*1.5 |

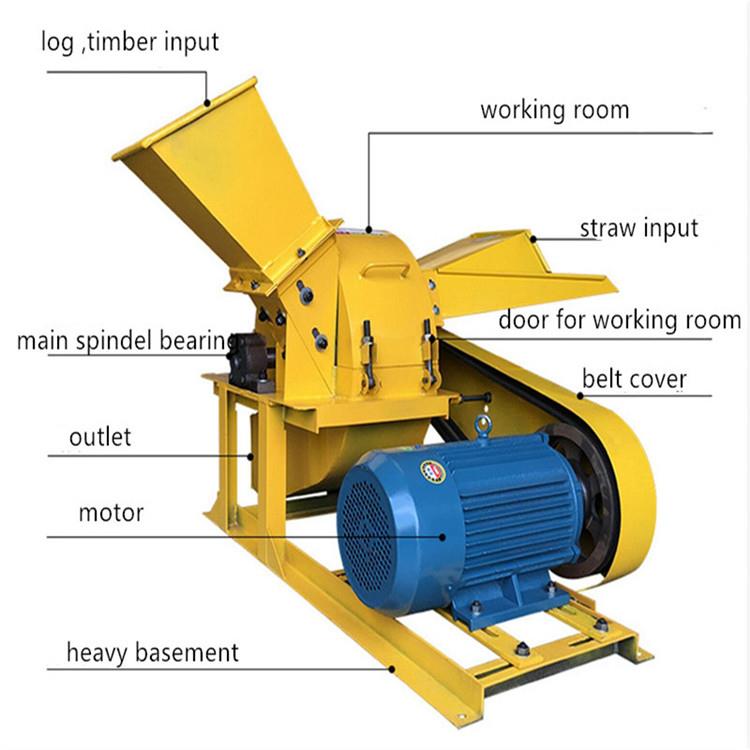

Detailed Images
 Thickened Blades |  Adjustable Screen Mesh |  Sharp Cutter |
Application:
Widely used in planting, papermaking, density board, biomass power plant, garden pruning, burning wood, chopped edible fungus culture, etc. Suitable for the pulp mill, paper mill, forest farm, garden planting, wood factory etc.

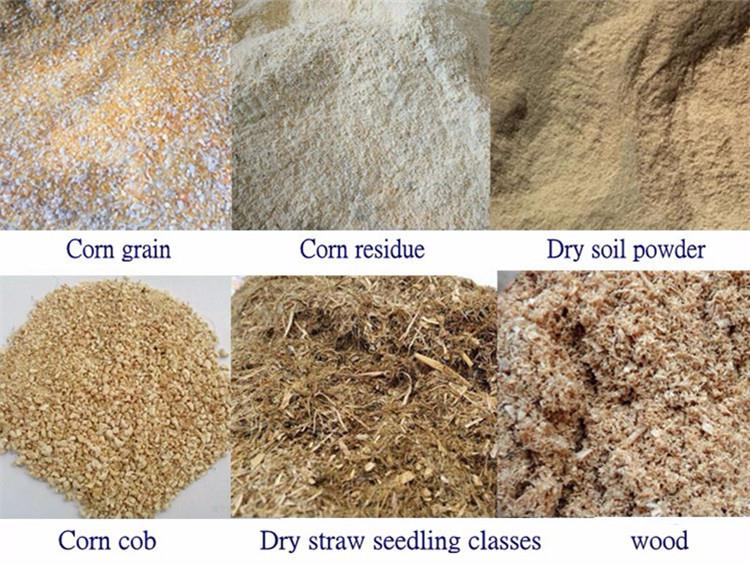

Finished products:
Package and Shipping
1.Machines will be packed by wooden case or in container.
2.Delivery time within 7-15 working days upon receipt of your payment, shipped by ocean, air lift etc.
