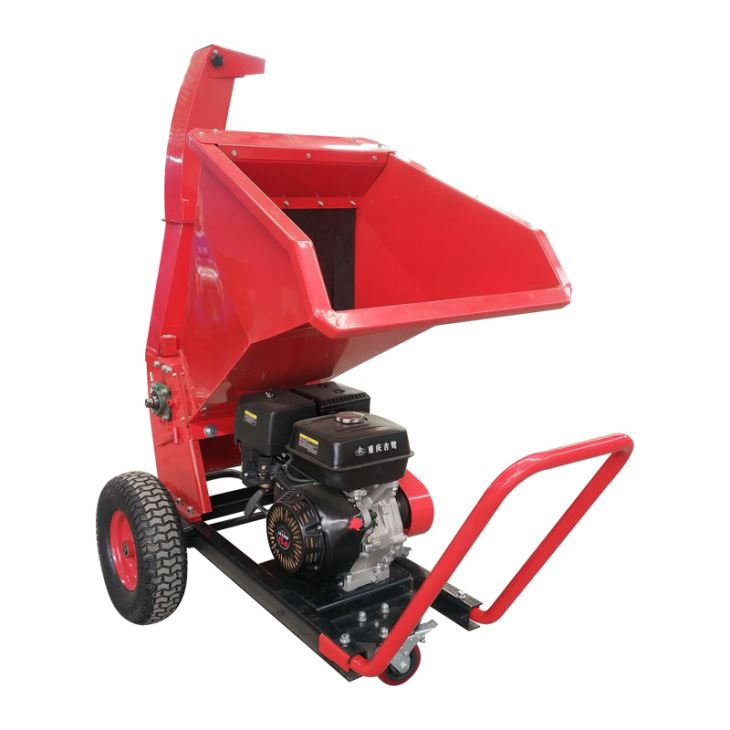

Petrol Engine Branch Chipper

Petrol Engine Branch Chipper

Petrol engine branch chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory.

Send Inquiry
Product Details

Petrol Engine Branch Chipper

This Petrol engine branch chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory.

Meanwhile, the using value can reach to the maximum and the environmental pollution can be reduced.


1, Branch crusher, strong power, high crushing efficiency.

2, Use a high speed tool to crush the branches.

3, Applicable to: Wood chips manufacturing; Herbivorous animal feed; Edible fungus culture base material; Pulp and artificial board raw materials etc.

Petrol engine branch chipper (3)

Petrol engine branch chipper (4)

Main Feature:

1. Tree branch crusher mainly is used to crush the large wood into small size pieces, like 3-5mm sawdust, can be equipped with electric motor,gasoline engine, or diesel engine.

2. Mainly used for industry of paper making, edible mushroom, charcoal making, shaving board, particle board, organic fertilizer.

3. This machine is suitable in garden, forestry, trees along the road maintenance, parks, golf courses and other places.

4. Hinged feed hoppers.

5. Self feeding feature.Four harded steel knives are designed to draw material into the cutting chamber.

6. 360 degrees discharge hood

7. Low power consumption and low noise.

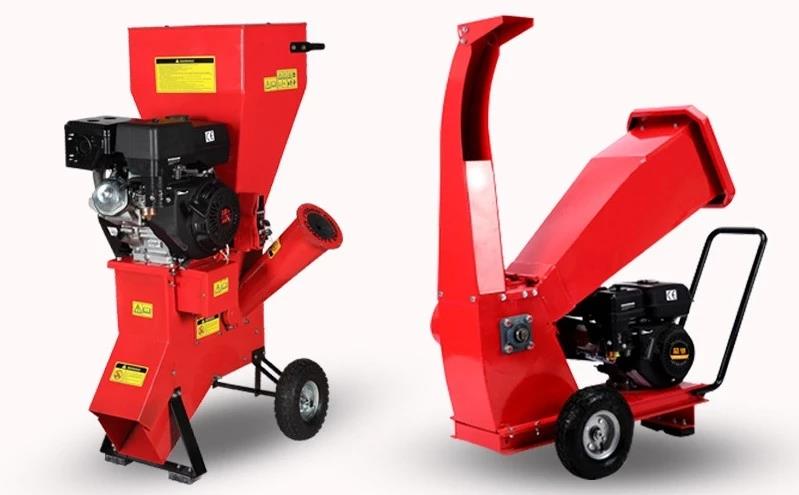

Wood chipper grinder (3)

Technical Parameter:

Model

WSF-6.5

WSF-13

WSF-15

Chipping Capacity

≤50mm

≤100mm

≤100mm

Production Efficiency

600kg/h

800kg/h

1000kg/h

Blade Speed

2530RPM

Starting System

Recoil Start/ Electric Start is available

OHV4-stroke gasoline engine

170F

180F

190F

Displacement

208CC

389CC

420CC

Max Output

4.0KW

7.3KW

8.5KW

Fuel Volume

3.6L

6.0L

6.0L

Oil Volume

0.6L

1.1L

1.1L

Packing

110*45*85cm

117*60*105cm

117*60*105cm

G.W

110KG

195KG

195KG

  • Packing:

We usually pack the small tree branch crusher in standard export wooden cases. We will wrap the entire small tree branch crusher with a plastic film to prevent the machine from scratching. Then fix the entire body with a wooden box to prevent the machine from being damaged due to transport bumps. If you have special request, please contact us in time.

  • Delivery:

For the machine, we support TNT, DHL, FedEx, UPS. If you need, we also support delivery by ship. We can also deliver the small tree branch crusher to your agent in China if you have.
