Mobile Wood Chipper

The mobile wood chipper produced by AINUOK factory is widely used in garden, forest, road trees protection, park, golf course etc.

Department, mainly used for grinding the kinds of branches cut off form the trees, then the particles we get can use as slipcover, garden bed base, , Edible fungus, Biomass power generation, and also can produce high density board, particle board, paper industry, etc. the particles can spray directly to the transportation car after shredding ,the volume of the delivery car is 10 times  of the original branch transportation volume. And also this garden shredder can grind the tree branches any time anywhere, much more convenient.

Characteristics

●Reasonable structure, easy assembly, convenient operation and maintenance.

●Small footprint, can be moved anywhere.

●Good finished product and low power consumption.

●It is widely used in the processing of wood scraps, large-scale material crushing of branches and trees, and it is specially designed for the movable trunking equipment of tree trunks under the trim of large farms and gardens, which is convenient for field mobile operations.

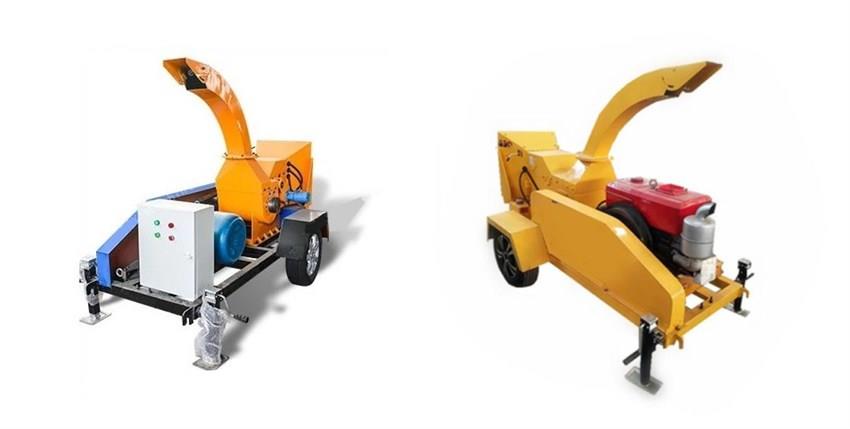

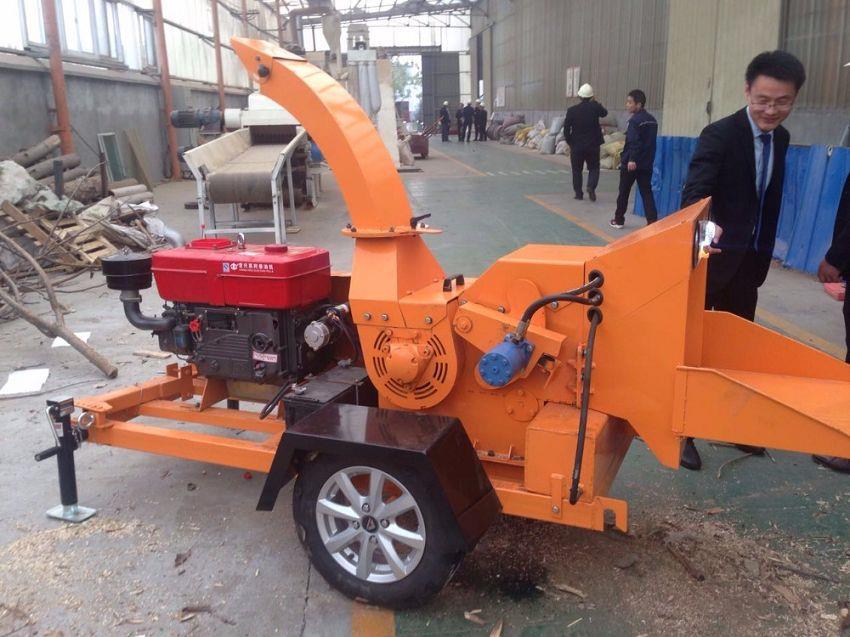

Diesel Mobile wood chipper

AK-6130 mobile wood chipper can feed wood with a diameter of up to150mm. WC-40 has hydraulic feeding system. It has two feed rollers and also has a system with a hydraulic tank and pump of its own. The hydraulic valve has three gears: forward, stop and reverse. The safety of user is secured with a patented feed stopper operated with the control handle.

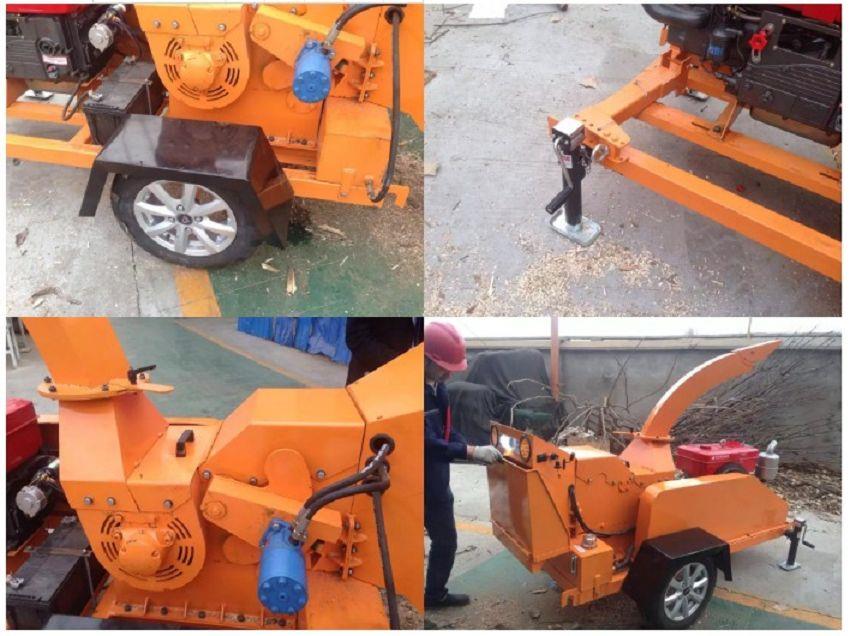

●Connector

This is the connector for be trailed. Sure, it can be made according to the requirement of customers.

●Meters and Launching system

It has electric launching system. There are five meters on it: water temperature, machine oil, electric current, fuel oil, oil tank level.

●Hydraulic oil tank

The oil tank is 38L.It guarantees that you can use it longer than ordinary one.

●Blades

There are two steel dual edge fly wheel blades on the AK-6130. Sure, if you need four blades on it, we can produce for you. The blade is made by tool steel.

●Bed plate

There is one bed plate on the inner of the feeding chute. It can guarantee the service life of chipper.

●Discharge chute

The discharge chute gives excellent airflow and easy adjustablility.

●Tyres

The diameter of the tyre is 53cm. It is always used on minibus in China. Another choice is turf tyres.

Technical Index

Mobile wood chipper
Model No.	AK-6130D	AK-6130
Engine type	Diesel engine	Motor
Power	28 HP	22 KW
Cutter drum Dia.	300	300
Start way	Electric start	Air switch
Speed	2600	2900
Blade	3	3
Feed press roller Dia.	280	280
Feed roller power	hydraulic	hydraulic
Feeding size (mm)	300*200mmm	300*200mm
Tires	165/70r13	165/70r13
Discharge Direction	360°	360°

Noted: Accept Customized design,color,logo,power etc.



Application

The mobile wood chipper is mainly used for chipping wood, hard wood and tree branches into sawdust, which can be used as a fertilizer, fuel, paper mills and wood factory. Meanwhile, the using value can reach to the maximum and the environmental pollution can be reduced.

Application of the Final Products

1.Organic fertilizer: free decay into surface can be formed a good organic fertilizer.

2.Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive

3.Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.

4.Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.

5.It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .

Flower potting soil	Mushroom cultivation base	Material for making pellets

FAQ

●How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

●Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.

●How about price?
Yes, we are factory and be able to give you lowest price below market one, and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.

●Welcome to visit our factory!

We will provide you our best equipments at the reasonable price to meet your requirements.
