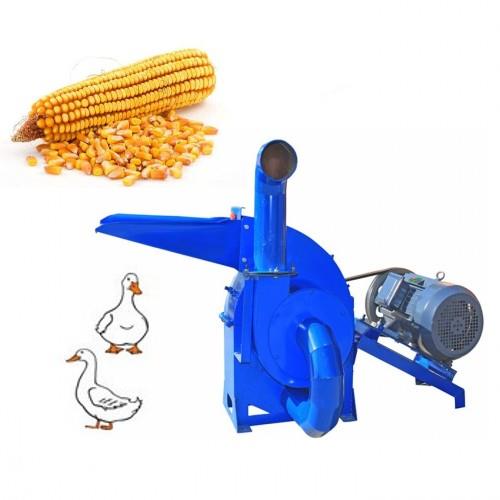

Livestock Feed Grinder

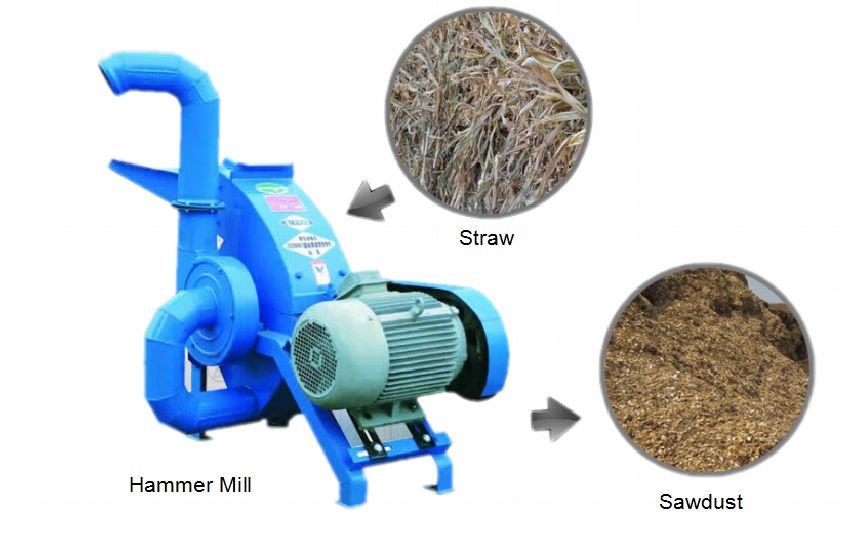

Livestock feed grinder is a new Feed hammer mill is used to crushing the grains like corn, bean, wheat into powders for animal poultry feed.also it can make the raw materials such as wood, wood chips, wood block, branch into sawdust in one process.

Feature

●Feed hammer mill can also crushing wheat straw, rice straw and so on.

●This kind of feed hammer mill usually is used together with feed pellet mill for making animal feed pellet. It is the best crusher for small farms, private workshops.

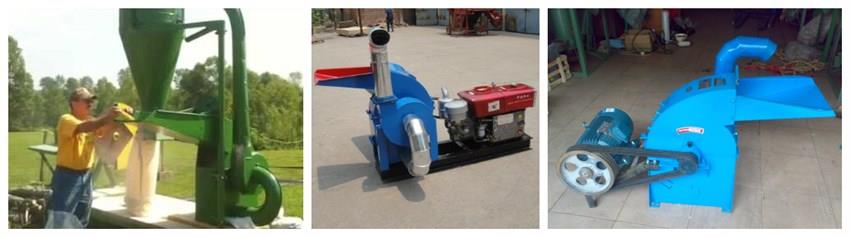

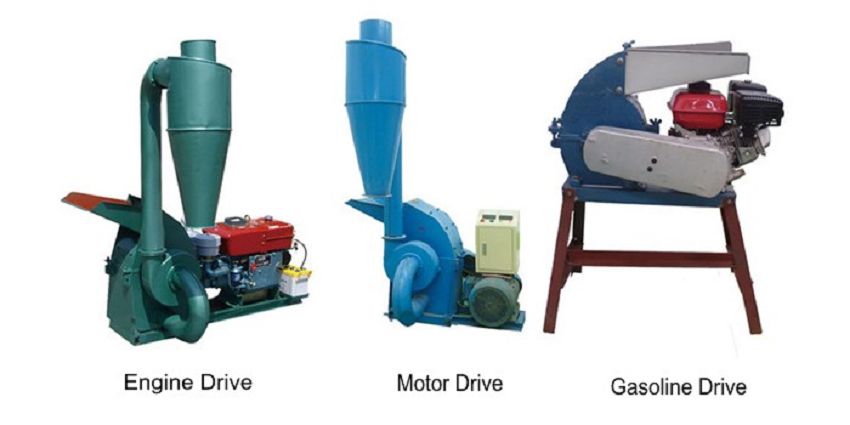

●We also can design and produce animal feed hammer mill grinder which is driven by diesel engine or a tractor.

●Grind all kinds of materials of pellet feed, such as corn, sorghum, grain, legumes, broken cake pellet and others.

●Building in rotor, grind the raw material with no dead angle, finished products would be more even.

Advantages

●Installation debugging good crusher in empty load, and then starting idle running for 2-3 minutes can feed. When such materials as stubble tendril crushing weight, namely a uniform must be quick hello. When the crushing grain materials, to add particles and adjust hopper, make its uniformity of material, in order to ensure the rated load motor, such as overloaded when can suspend feed, continue to normal after feeding.

●And materials after feeding, let the pulverizer continue running for 1-2 minutes, and all the materials in the machine and to set shattered after downtime sack.

Technical Parameter

Model No.	Power	Output(Kgs/h )	NW/GW(KG)	Packing Size(cm)	Remark
FS300	2.2KW	50-80	75/95	48*58*63	Motor
FS350	3 KW	50-180	75/95	48*58*63	Motor
FS400A	7.5HP	150-450	120/140	90*58*102	Gasoline engine
FS400B	4KW	150-450	120/140	90*58*102	Motor
FS420A	15HP	360-650	330/360	147*73*109	Diesel engine
FS420A	22HP	400-850	330/360	147*74*111	Diesel engine
FS420B	7.5KW	350-650	260/320	112*82*107	Motor
FS420B	11KW	300-800	320/360	112*82*107	Motor
FS500A	55HP	850-1500	800/840	150*142*123	Diesel engine
FS500B	22KW	800-1200	600/630	124*97*106	Motor

Remark

We can customize all kinds of high quality wood hammer according to your requirements!

Including diesel wood hammer, movable wood hammer, wood log wood chipper etc.



Working Principle

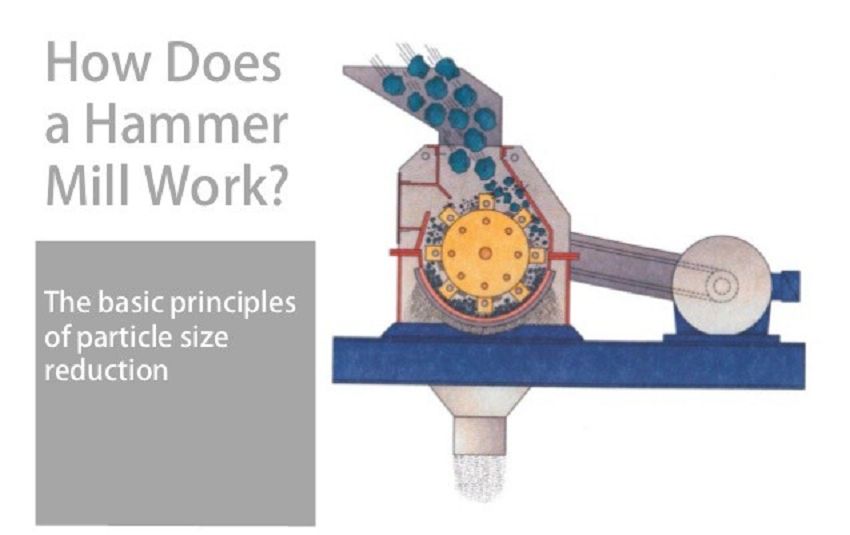

When this machine works, the raw materials will be fed to crushing room through the feeder, under the impact/crash of high speed rotating hammers, the raw materials will be crushed rapidly, then go through the screen and be sucked to the outlet. The size of screen can be customized as requirements.

Application of the livestock feed grinder

The livestock feed grinder can make wood branch, wood logs, wood waste, wood chips, wood pieces, bamboo, panel, and corn comb, stalks, rice husk, coffee husk, coir pith, jute sticks, groundnut shells into sawdust in one process.



The benefits of our Livestock Feed Grinder

●Driven by a diesel engine makes materials crushing possible especially in the rural area with shortage of electricity.

●The core part -the hammers are made of high quality carbon alloy steel, which is durable and wear-resistant.

●Available screen discharge area can be up to1904 square centimeter which allows for high throughput at a lower horse power.

●We can equip air blower, the crushed material can be directly collected and transported to next machine for further processing.

●You can change screening sieve according to different material grinding requirements.

●We can customize the following sieve with screening hole diameter of 2mm-10mm.

FAQ

Q : Do you offer sample ?

A : YES. we offer sample before mass order . the delivery time is 7-10 working days.

Q : What about the sample charge?

A : We will charge first, and reduce the cost at the mass order .



Your advantage

●15 years experience in manufacturing agricultural machines.

●OEM acceptable.

●24 hours online email and phone support.

●One year guarantee . we offer spare part with the machine to satisfy your need.

●Rich experience in exporting. we have selected and kept good cooperation with several large shipping company.



How to place order

●Feel free to send me inquiry/message about your question, need quantity, model .

●We will offer help within 24 hours.

●After discuss, we confirm the order quantity and price. We usually accept T/T and Western Union.  I will send you stamped PI with our bank account .

●Upon receipt of your deposit, we will arrange the machine for you timely.



After sale service

●We will remind the shipment arrival in advance for you to prepare for the clearance.

●The English operation manual will be sent to you with the machine. if you need, we can send electronic edition to your email.

●We will keep in touch with clients online, offer you help at any time .
