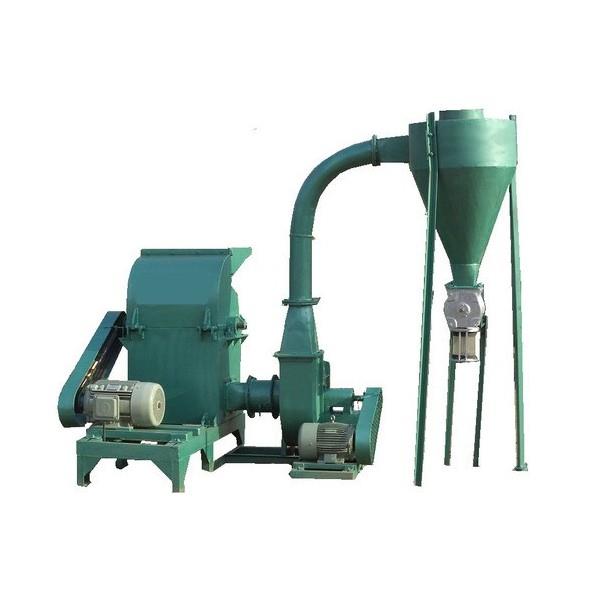

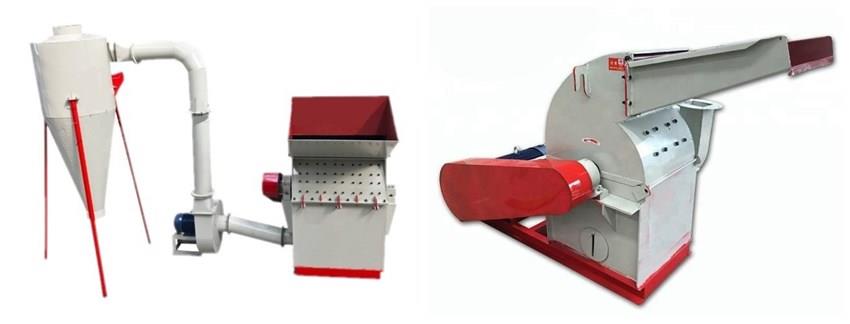

Wood Branch Crusher

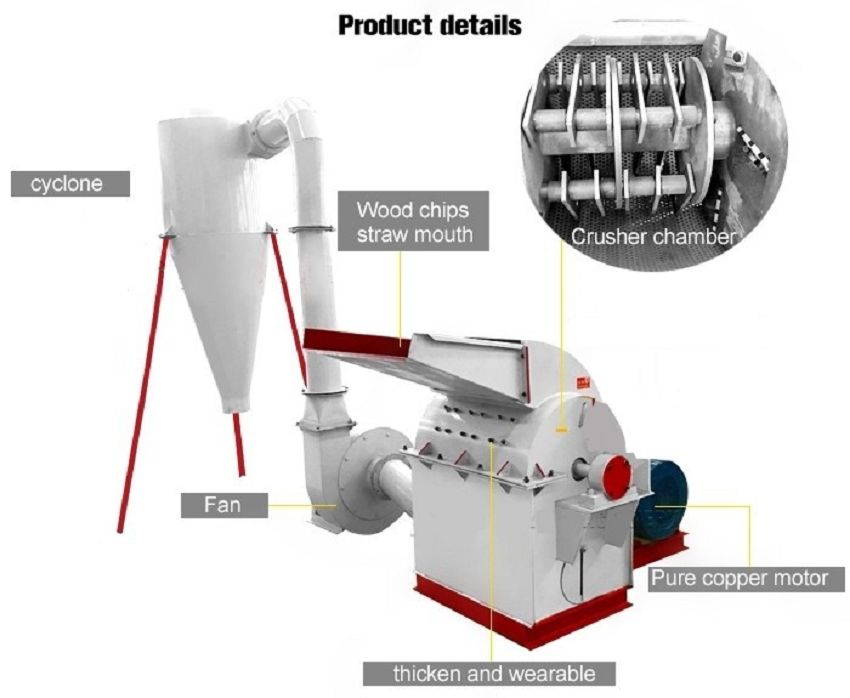

The wood crusher produced by our company is a kind of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc.
Send Inquiry
Feature
●It is hammer-shape pulverizer and ordinary wood chip machine perfect union, and together the two machine function, make the function of the machine more powerful and application wider.
●Ideal equipment for producing various types of wood products. Wood pellets or biomass briquettes production line also needs crushing equipment.
●Specially designed to crush branches, tree roots,slab scraps and so on for further production.It occupies little room which makes it quite a popularity in small size biomass fuel plants.
Technical Parameter
|
Model |
FS-500 |
FS-600 |
FS-800 |
FS-1000 |
FS-1300 |
FS-1500 |
|
Feeding Size(mm) |
500*280 |
600*300 |
800*350 |
1000*450 |
1300*450 |
1500*450 |
|
Crushing chamber size(mm) |
500*500 |
600*600 |
800*700 |
1000*800 |
1300*800 |
1500*800 |
|
No. of hammer(pcs) |
30/20 |
40/30 |
50/30 |
66/48 |
72/54 |
90/72 |
|
Power(Kw) |
22-30 |
30-37 |
37-45 |
55-75 |
75-90 |
90-110 |
|
Fan power(Kw) |
without |
without |
7.5 |
11 |
15 |
15 |
|
Capacity (Kg/h) |
500-800 |
800-1200 |
1500-2000 |
2000-3000 |
3000-4000 |
4000-6000 |
Noted
We can customize all kinds of high quality wood hammer according to your requirements!
Including diesel wood hammer, movable wood hammer, wood log wood chipper etc.
The benefits of our Wood Branch Crusher
It is widely used for grinding for maize, grain sorghum, rice bran, rice straw, vine, maize straw, sorghum stalk. beanstalk, wheat straw etc.
●Belt conveying,compact structure,easy to operate,all of all rotors pass an accurate dynamic balancing test, less vibration during running
●It is with aspiration system and easy to operate
●It is suitable for rice factories, flour factories, feed factories and so on
●Blade type: hammer sieve.
Application
The wood branch crusher are for grinding the Bio-mass like straw, coconut shell , stalk and wood chip, tree branch and forest waste to be powder of less than 3-5mm, which is right size before pelletizing and briquette. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all.
Application of the final products
The final product can be used to make wood charcoal, animal bedding, also can used in paper making, edible mushroom industrial production.
Our Service
We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
