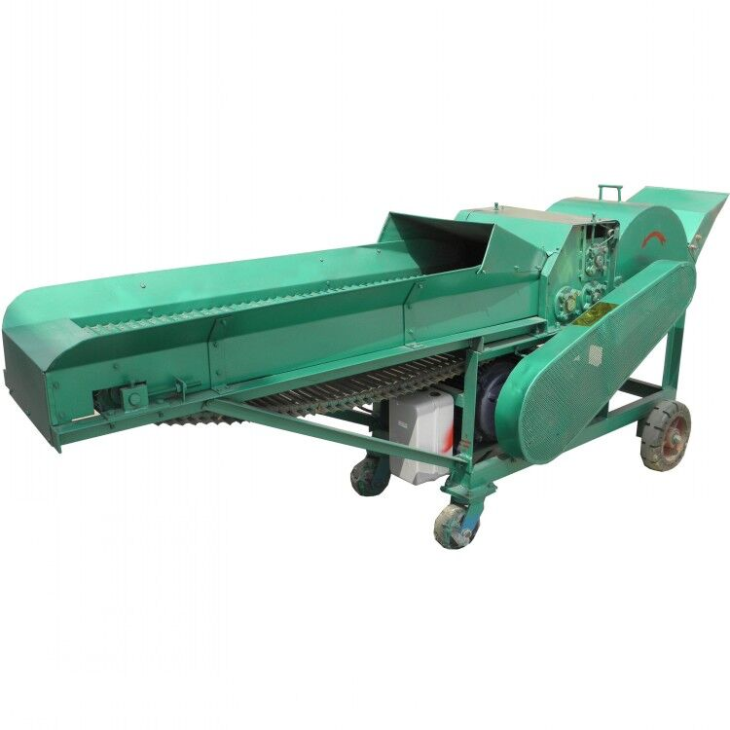

Straw Kneading Machine

Send Inquiry

Product Details

The manual pasture Straw kneading machine basis domestic and international market demand design and approved products.Mainly used for corn straw strawing processing, suitable for corn, wheat, grain and other crops straw. As cattle and sheep forage processing, can be a variety of crop straw crushed into 50mm or so filamentous, its kneading into a neat incision, no induration, soft to improve the palatability of cattle and sheep forage, raising the forage Of the feed utilization.

image001(001)

Feature

1.Straw kneading machine can knead all kinds of crop straws such as cotton and wood straws, fine branches, corn straws, bean straws and sorghum straws. All can process into soft and broken pieces and filaments at one time.

2.This machine can be used for paper making, feed, organic fertilizer, environmental protection,energy processing, animal husbandry and other industries.

3.Material length can be adjusted according to gear shift.

4.Straw rub silk machine can be equipped with 7.5KW motor or 10PH diesel engine.

image003_

Technical Index

Model	RS-3	RS-6	RS-10
Power	7.5KW	15+2.2KW	22+3KW
Voltage	380v	380v	380v
Blade number	32	40	48
Dimension	17008001000mm	30009001050mm	36009301240mm
Weight	170kg	980kg	1100kg
Work efficiency	3t/h	6t/h	10t/h

Structure Introduction

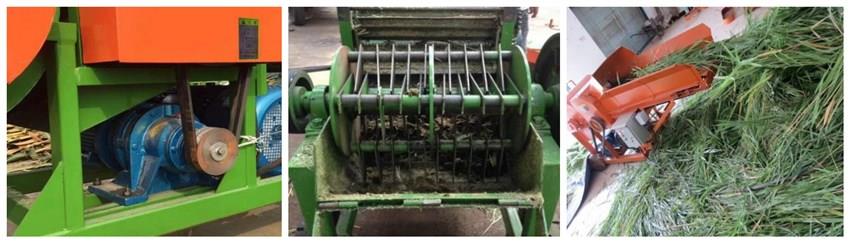

1. This series of equipment mainly consists of feeding device, transmission device, feeding device, cutter device, crushing device, filter device, throwing device, walking device, protective device, traction device and so on.

2. The spring on the top of the feeding bin is designed, which can stretch according to the thickness of the forage and protect the machine from damage.

3. With 32 blades, the raw material is fully crushed to make the filaments softer and more delicate.

4. The transmission parts are lubricated with sodium-base grease. Regular lubrication reduces wear and increases their service life.

image003_2

Advantages

●The animal husbandry hoe grass silk machine is reasonable in design, easy to operate, sturdy and durable.

●After the straw is cut and pulverized, the contact area between the microorganisms and the grass in the rumen of the ruminant is increased, which is beneficial to the degradation fermentation, thereby improving the utilization rate of straw digestion.

●At the same time, the straw and forage are chopped and twisted into filaments, which improves the palatability and utilization of the feed. Both the motor and the diesel engine can be powered.

image003_3

FAQ

1.Ask:The voltage is different. How should we use it in our country?

Answer:The voltage can be customized according to your country standard.Such as 110V,220V,380V etc.

2.Ask:How can we get a best price?

Answer:Quality is the heart of one company.We can not promise the lowest price,but we can promise the best quality and most reasonable price.On the other hand,bigger order you placed,cheaper price you will get!

3.Ask:Where is your factory located? How can I visit there?

Answer:Our factory is located in Zhengzhou,Henan Province, China.You can fly to Xinzheng Airport directly. We will pick you up on Xinzheng International airport.

4.How about your after-sale service?

Answer:Any question you have,no matter whether in warranty period or not.As long as you give me a email or video. Our engineers and I are very willing to solve the problem for you.Not only our machine have high quality,but also we have very good after-sales service.So that is why we have many regular customers.

5.The date of delivery.

Generally within 15 working days.If there is a need for special customization, it may take a little longer.
