Wood Log Branch Pieces Chipper

Product Detail

Wood chipper is mainly used to crush  wood logs or wood timber,plywood,wood branches,furniture waste into small chips,the thickness of  chips is 3mm-5mm,length and width is about 15-35mm.By adjusting knives gap,outlet chips dimension will be adjusted.

Wood chipper devides in to disc wood chipper and drum woop chipper,Disc wood chipper used to process raw material which diameter less than 200mm;Drum chipper can proceed big diameter material including wood log,timber,etc.

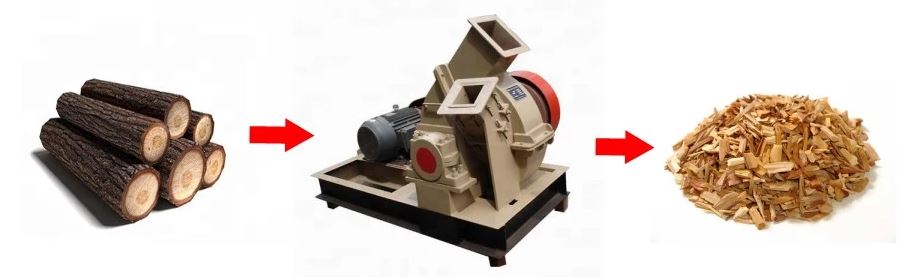

Raw Meterials and finished products

The main raw material is square blocks, round logs,wood staff, and it can also be used to cut the wooden material such as reed, bamboo, sugar cane, etc. The final size can be according to customers' request.

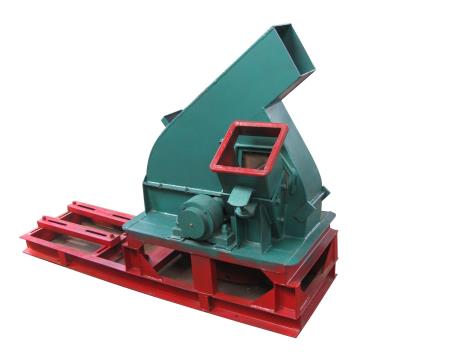

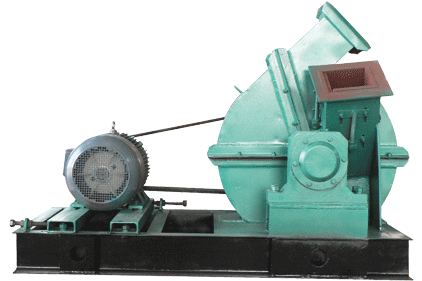

Features of disc chipper
1.It can be used for cutting smaller wood lods,wood pieces,branches,twigs and planks,etc with diameter less than 200mm.The Diameter of final wood chips at range 25-35mm.

2.Compact structure, reasonable layout, easy installation, convenient operation and maintenance.The cutter disc adopts wear-resisting chromium plated, greatly prolong the service life.

3.High capacity, and the length of the wood chips can be freely adjusted within the specified range.

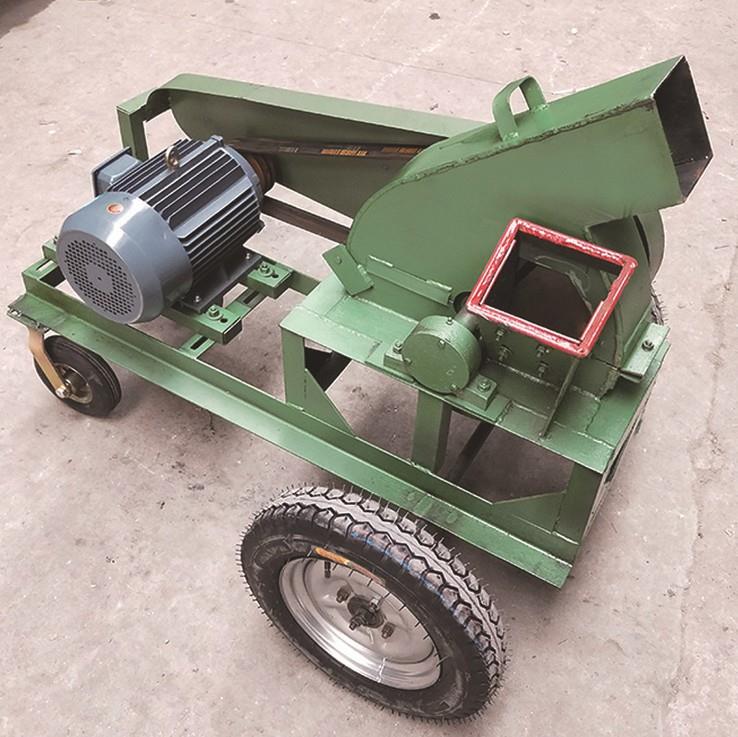

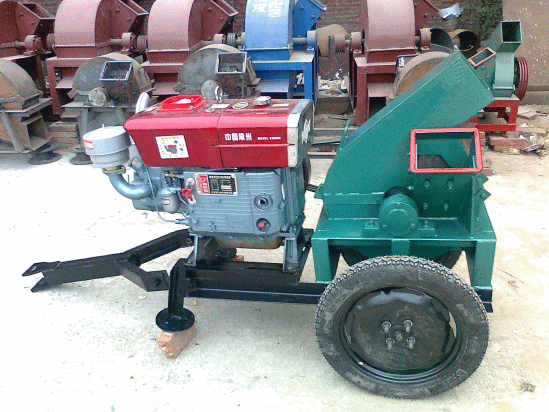

4.The drive cam be elecreic motor,diesel engine or gasoline engine at customers' option. Also it can install movable wheels and no limitation of working site.

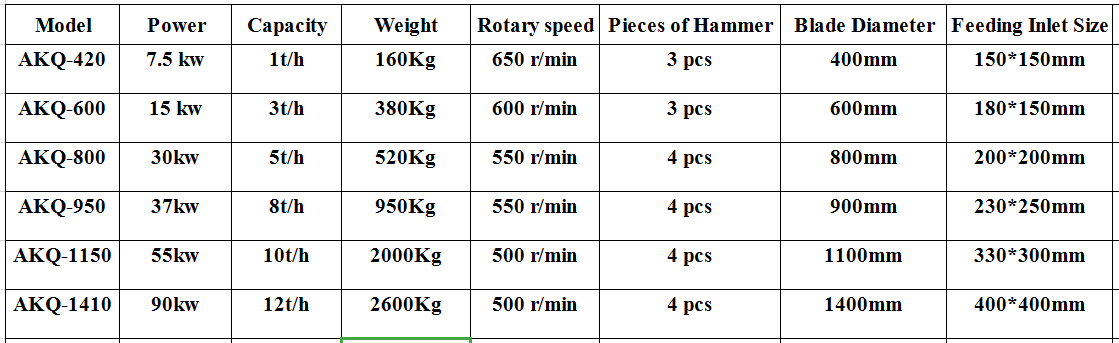

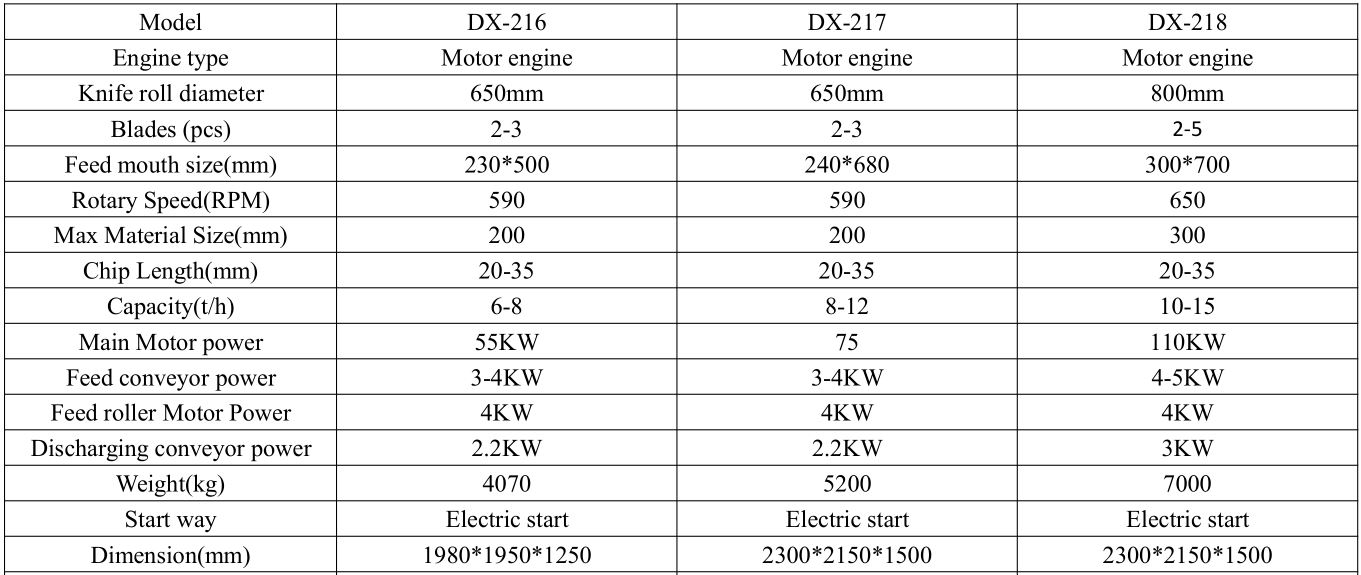

Specifiaction of disc chipper

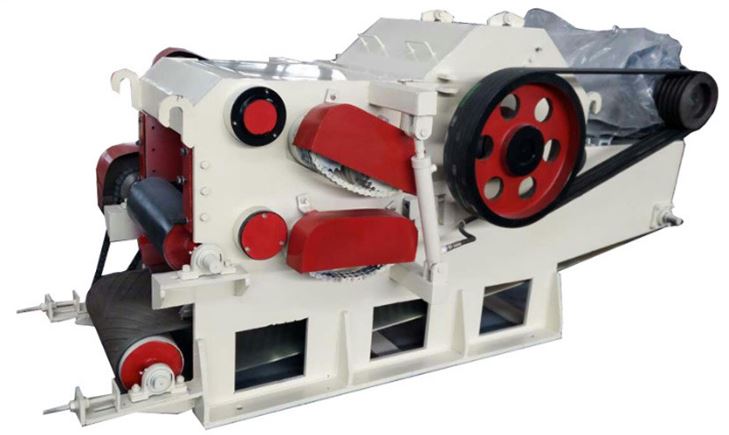

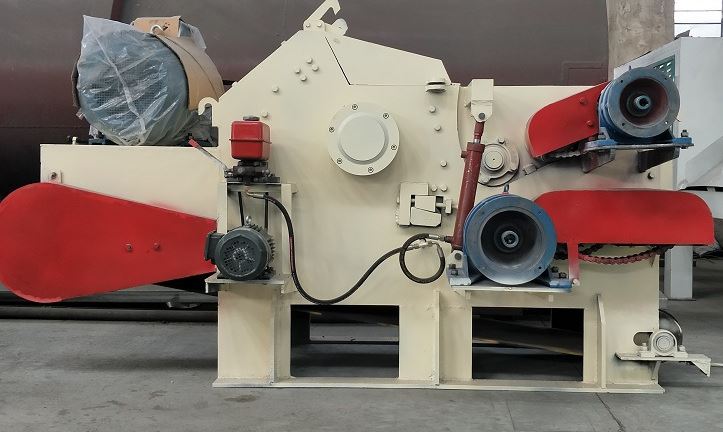

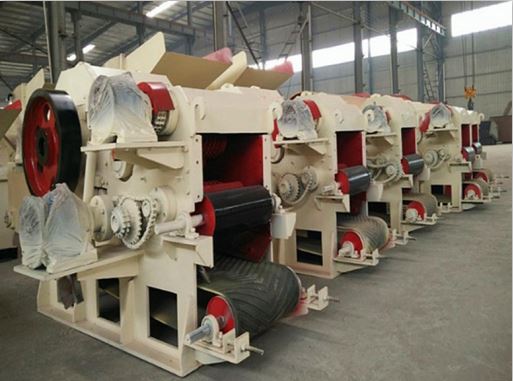

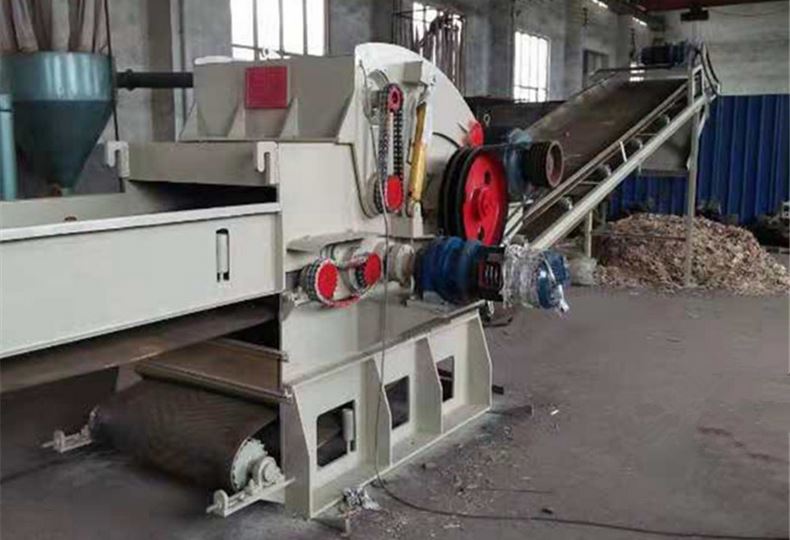

Features of drum chipper
1.The machine base is welded with high-cavity steel plates, which is the supporting foundation of the entire machine，two knives are installed on the knife roller, and the special knife bolts are used to fix the knife on the knife roller through the pressure block;

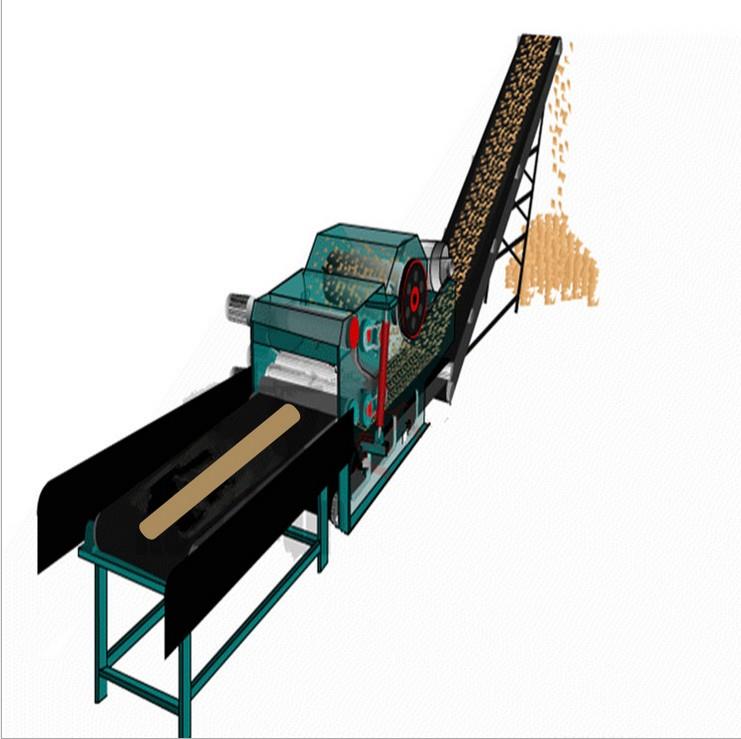

2.For different thicknesses of raw materials, the upper feeding roller assembly can float up and down in a certain range by means of the hydraulic system; the cut qualified pieces fall through the screen holes and are discharged from the bottom, large pieces will be cut again in the machine.

3.High capacity, low energy consumption, high quality wood chips and lower price.

4.Compact structure, reasonable layout, easy installation, convenient operation and maintenance, and high production capacity.
5.Different model and capacities at cutomers' option.

Our advantage:

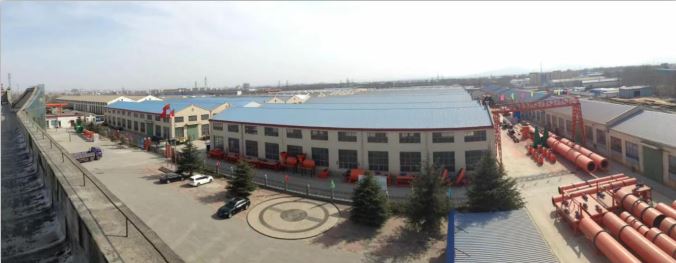

1.10 years of manufacturing experience,professional and delivery on time.
2.Outstanding quality and design,specified expert on inspection of product and design layout.
3.We can offer turnkey service and give our best recommendation to customer,process line design,equipment installation and operate training.Engineer is available to offer instruction on line or go overseas installation and repair.
4.One year warranty of all machines and lifetime supply of parts.
