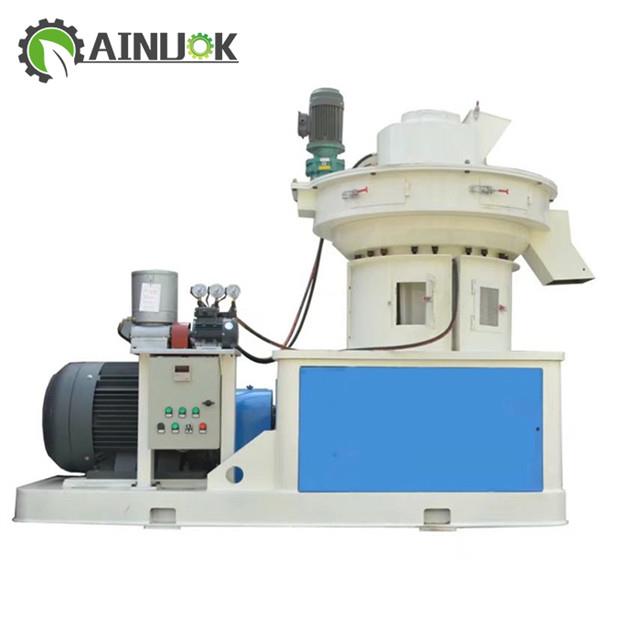

Wood Pellet Machine
Wood Pellet Machine/Biomass pellets making machine is a high efficient machine to make waste materials into solid fuel.

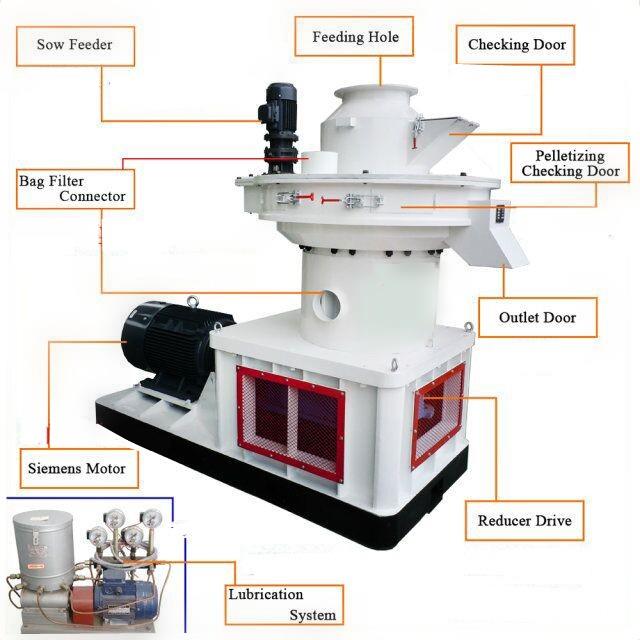

Send InquiryWood pellet machine, also called biomass fuel pellet mill has unique design of "double layer die" and high wearable alloy "rollers". It is an ideal press equipment with low investment and high profit.
Raw material
Like peanut shell, bagasse, castor shell, straw, sawdust, coffee grounds, sunflower shell, cotton stalk, bamboo, jute residue, tealeaf residue, wheat straw, palm shell, bean shell, coconut shell, palm fiber, medicine residue, etc.
Technical Index
Model | Die Dia (MM) | Pellets Dia(MM) | Dimension (MM) | Weight (T) | Capacity (T/H) | Power(KW) |
K-450 | 450 | Φ4-12 | 2400*1000*2100 | 4.5 | 0.8-1 | 75+1.5+0.55 |
K-560 | 560 | Φ4-12 | 2600*1300*2300 | 6.1 | 1-1.5 | 90+1.5+0.55 |
K-650 | 650 | Φ4-12 | 2950*1300*2450 | 9.5 | 1.5-2 | 160+1.5+0.55 |
K-850 | 850 | Φ4-12 | 3350*1450*3180 | 14.5 | 2.5-3.5 | 220+3+0.55 |
K-1050 | 1050 | Φ4-12 | 4200*1850*3700 | 22.5 | 4-6 | 315+5.5+3 |
Advantage of Biomass pellet machine
1.Compact structure, high capacity, less power consumption, stable working etc.
2.Dies of hole diameters 4-12mm are available for this machine, dies diameters can be customized by user
3.Unique automatic lubricating system: lubricate the bearing, dies and rollers, increase the produce efficiency and reduce energy consumption.
Use of biomass pellets
1.The density of raw materials is generally about 130kg/m3, but the density of pellets after molding is more than 1100kg/m3. It is very convenient to transport and store, and its combustion performance is greatly improved.
2.The process flow is raw material →crushing → drying → forming → cooling → bagging. The pellet fuel after molding has large specific gravity, small volume, and is resistant to burning.
3.It is a new type of bio-energy, widely used in heating, life stoves, hot water boilers, industrial boilers, Biomass power plants etc.
