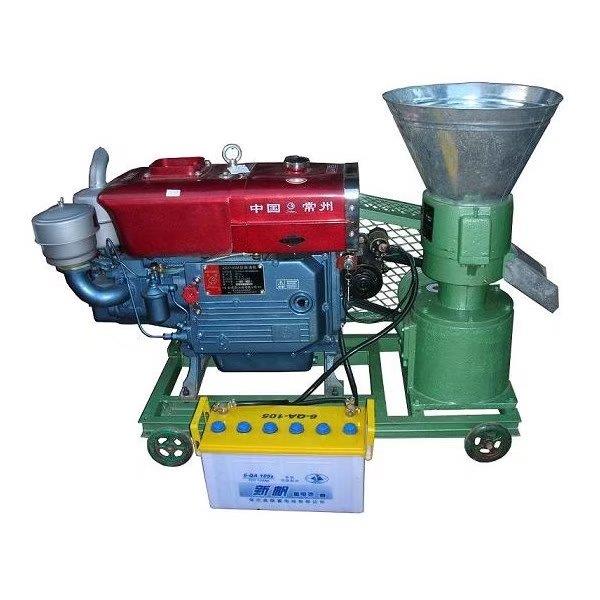

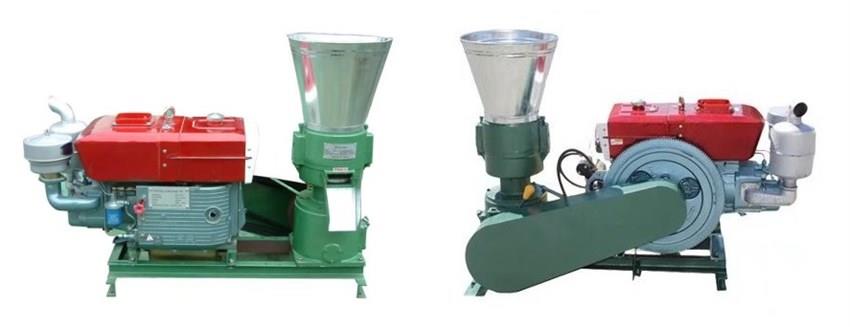

Diesel Pellet Mill

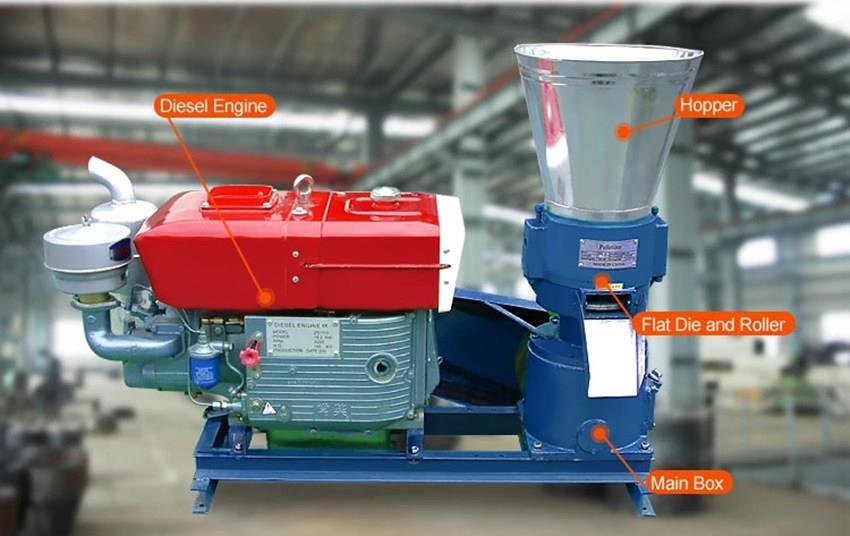

Diesel Pellet Mill is researched, designed, manufacturing, and processed by our company technician, The machine is mainly used to process sawdust. Straw, cotton stall, rice straw, rice husk, peanut husk, bamboo power, palm and other materials carbon dust, wasted paper. The machine with tight structure, easy to operate, stable operation, can work continuously. The pellet with high density, high heating value. Low moisture content and low ash rate. Machine with high precision gear transmission gearbox, hydraulic oil system, can carry out automatic cycle between the gearbox and the main bearing oil.

Feature

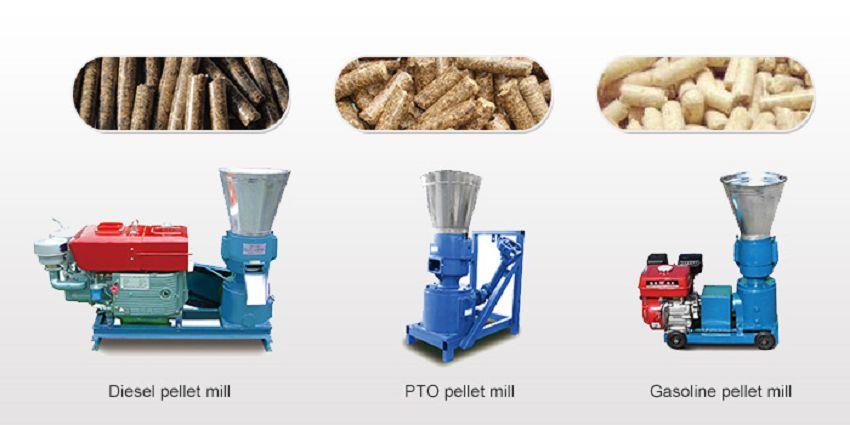

1. Powered by both diesel engine ,gasoline and motor,PTO driven

2. Direct Connection of motor shaft and belt drive

3. Can run smoothly with few noises.

4. Pellet Machine can equipped wheel,move around

5. Machine can be used for making feed pellet,also make wood pellets

Raw material

1. Sawdust, rice husk,straw, grass,crop stalks etc. biological fertilizer, animal manure

2. Moisture required: 10-15%

3. Size:3-5 mm



Technical Parameter

Type	Power	Capacity (kg/h)	Dimension(mm)	Weight(kg)
PL-120	8HP	60-100	730*320*670	135
PL-120B	3KW	60-100	750*310*620	100
PL-150	8HP	100-200	760*430*710	150
PL-150B	4KW	150-220	770*340*680	115
PL-200	15HP	220-350	1180*560*1020	360
PL-200B	7.5KW	200-300	1000*430*950	210
PL-230	11KW	300-400	1150*500*970	320
PL-260	15KW	400-600	1200*500*1030	370
PL-300	22KW	600-800	1320*530*1070	480



Buying Guide

If you are looking for pellet machine ,want build your own pellet plant ,you can tell us below request:

1. What’s your raw material is ?

2. Raw material size mm,

3. Moisture content %

4. Final pellet diameter mm

5. Required capacity per hour?

6. Power required Motor,Diesel engine ,or PTO drive ?

7. Local voltage  V/HZ

Upon we get your exactly request, we propose our plan with offer in short time.

Package

1.Machines will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.

2.Packaging details standard export wooden case or in container.



Shipping

1,We will serve your shipping method about ocean transport ,air lift ,freights and so on.

2,The delivery time is usually 7-15 working days upon receipt of your payment.

FAQ

1) How can I place order?

A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?

A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.

3) What's the order procedure?

A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4)How do you take care when your clients received defective products?

A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
