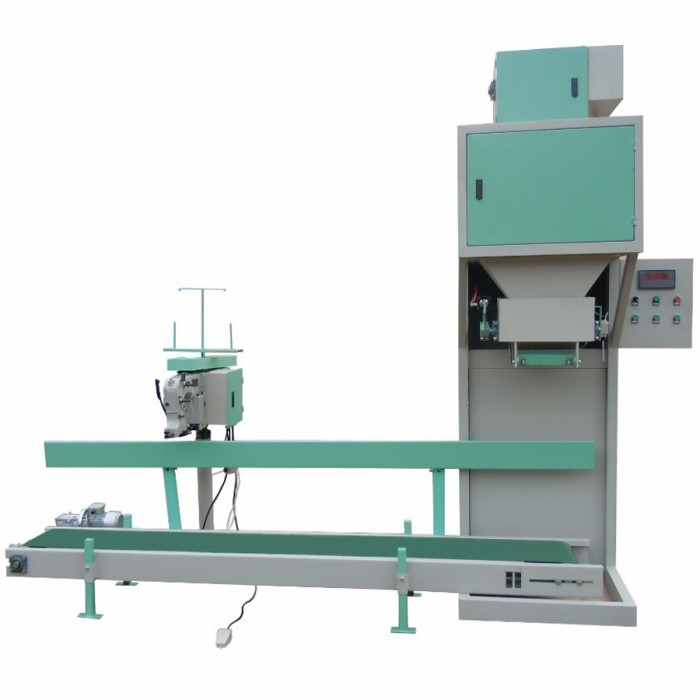

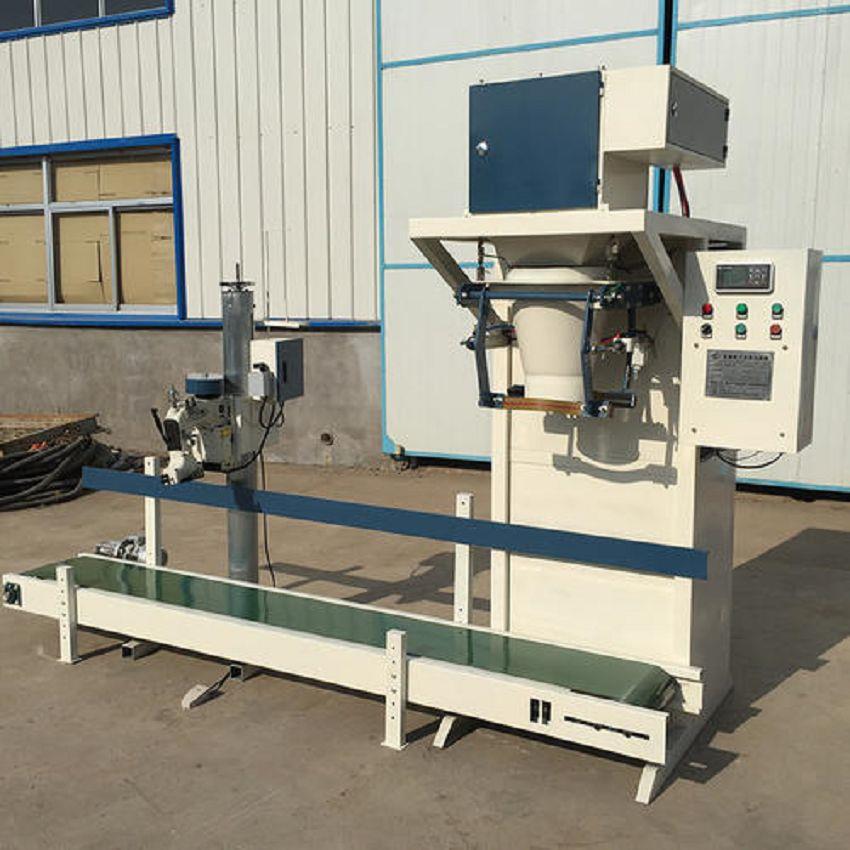

Weighing Filling Sealing Machine

●The PW-50  Weighing Filling Sealing Machine is one kind of machinery the quota bagging machinery which unifies for the material and the electronic weighing.

●Widely is suitable for the table salt, the industrial chemicals, the feed, the medicine, the grain, the food additive uniform flux mobility good pellet or the powdery material quota packing,

●Its merits is: The simplicity of operator, the perform reliably, the measurement are accurate, the price small advantage, corrosion-resisting, are one kind of ideal quota packaging machines.

Machine Included

●5 - 50 Kgs Bag Weighing Packing Machine * 1 (ONE) Set

●Buckets Conveyor Feeder * 1 (ONE) Set

●Bags Conveyor Belt * 1 (ONE) Set

●Bags Sewing Machine * 1 (ONE) Set

●Air Compressor * 1 (ONE) Set    [Optional]



Technical Parameters

Model:	PW-50
Packing Weight:	5-50Kg
Maximum Weighing Weight:	100Kg
Packing Speed:	4-6 bags/min
Packed Error:	≤ 0.3%
Air Pressure:	0.4-0.6Mpa
Air Consumption:	0.5Nm3
Weighing Mode:	Weighing by Clamp-Hold Bag
Frequency/Voltage:	AC Three-Phase 50Hz/60Hz; 220V/380V
Power:	2.2kw
Dimensions:	1900×1500×2800mm

* Control cabinet with optional of LCD touch screen and PLC

Characteristics

●The error of automatic correction, out-of-tolerance alarm, fault source automatic diagnosis, and other functions

●Contact with the material parts adopt stainless steel material, long service life

●Delivery infinitely adjustable-speed motor adopts aluminum alloy type

●Reserve a printer interface, can print packing number, total weight of production data

●The reserved RS232 serial port, and peripheral management system for data communication

●Serial port, and peripheral management system for data communication

●Through the instrument automatic control, the realization of a two-speed feeding, feed speed and precision guarantee.On

●Artificial bag, double cylinder holding, a high degree of automation, reliable operation, easy to operate

●The meter high sensitivity, sampling speed, software function is strong, has a standard interface, can communication with the computer

●Weighing speed, accurate measurement, digital display, intuitive easy to read, stable and reliable, and convenient maintenance

●Control cabinet USES the seal form, the dust is suitable for bad environment

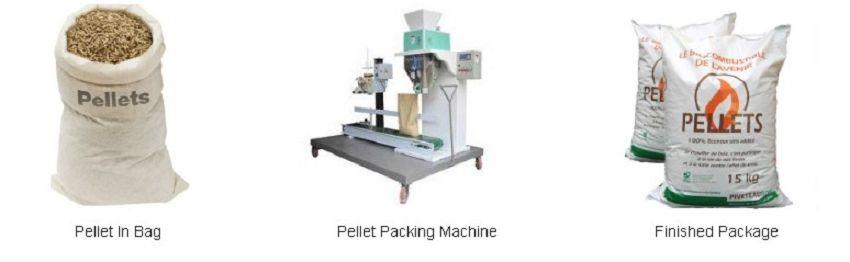

Process steps of Fuel pellets packing machines bagging machinery used for fuel pellets:

Manual bag placing → Auto filling → Auto weighing → Auto bag discharge → Auto bag conveyor → Bag sealed → Next round

FAQ

Q1. How to choose granules and feed pellet quantitative packing machine?

Please tell us about your product's size, fludity, corrosivity,etc. Then our sales will choose suitable model for you.
Q2. Which payment do you accept?

We accept T/T, West union, Paypal, credit card etc.

Q3. How about the delivery time?

Normally, our delivery time is 20-30 working days after we receive the deposit. If the automatic bagging and pelletizing line, we need to extend the delivery time.

Q4. Warranty

We ensure one year warranty, life-long service, and provide long-term parts and repair service.

Q5. How can I get know more of your company?

Please visit our website: www.bestmachtech.com

Q6. Pls provide us the following information for the best price:
1) Quantity what you want
2) What kind of material do you want to pack?
3) Packing weight: ?kg/bag
4) Packing speed: ?bag/hour
5) Precision: error range(g)
6) For bag sealing, do you need sewing the bag mouth or heating sealing?
7) Where is your material flowing from? Do you need the screw conveyor or bucket elevator which we can also supply?
8) Packing demand: no packing or wood packing?
