Wood Charcoal Briquette Plant
wood charcoal briquette plant to make sawdust into half-charcoal-stick.It is equipped with the auto controlling heating system.The product of this machine can be used to heat boiler, fireplace,etc.for warm in house.
Send InquiryWood Charcoal Briquette Plant

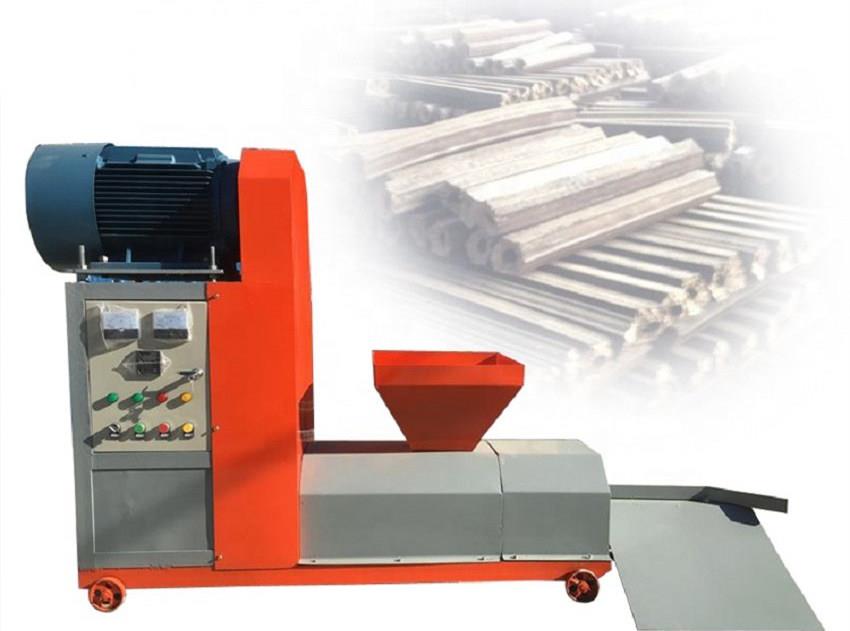

This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure, being easy to operate and maintain.
The size of raw material feed need to be 3-5mm, if more than 5mm, need use crusher to crush them first, the moisture of raw material should be 8-12%, or use dryer to dry them. the final product can be many shapes of bar, such as round shape, hexagon shape, square shape and so on. and the diameter of briquette can be 50mm,80mm.

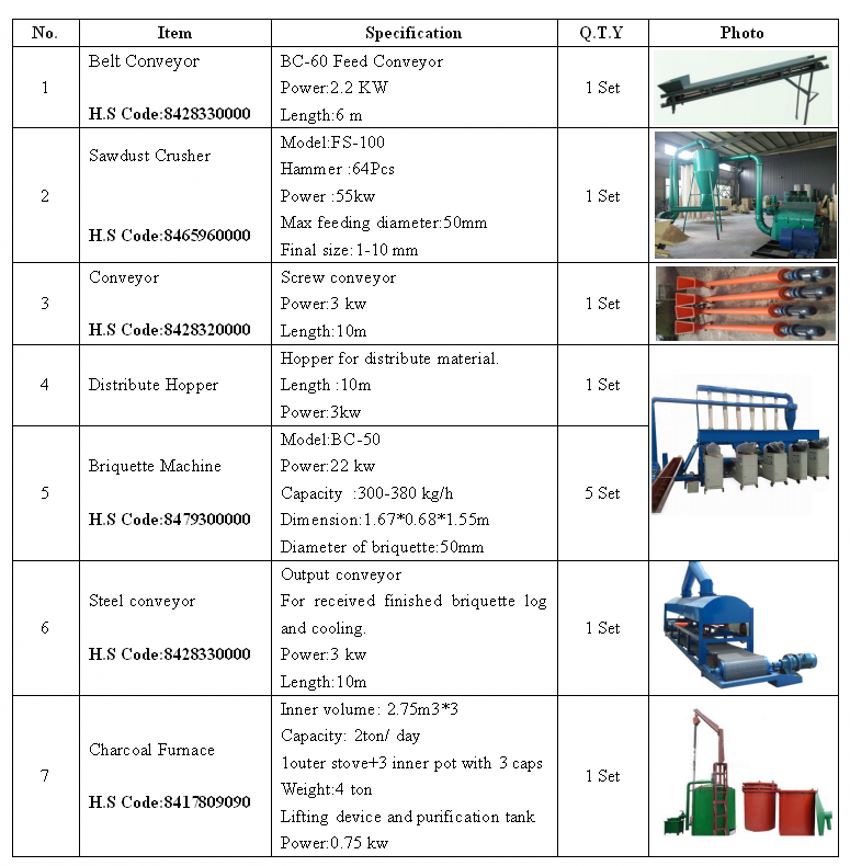

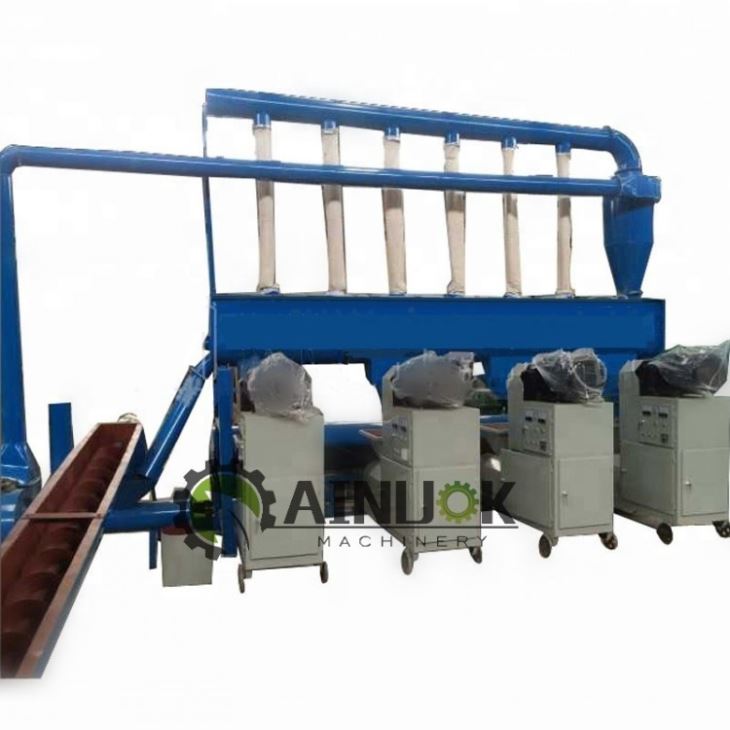

2 Ton/ Hour Biomass Briquette Charcoal Production Plant
No. | Item | Function | Power | Q.T.Y |
1. | Belt Conveyor | Delivery sawdust into crusher machine | 3 kw | 1 Set |
2. | Sawdust Crusher | Convert wood chips into sawdust 3-5 mm | 55 kw | 1 Set |
3 | Conveyor | Delivery sawdust into Hopper | 2.2 kw | 1 Set |
4 | Distribute Hopper | Distribute material into separate hopper | 3 kw | 1 Set |
5 | Briquette Machine | Shaping and make briquette charcoal | 18.5kw | 5 Set |
6 | Out conveyor | Delivery finished lump briquette charcoal | 3 kw | 1 Set |
7 | Charcoal furnace | Carbonized briquette into charcoal | 0.75 kw | 1 Set |
8 | Electric box | Control full line electric | -- | 1 Set |

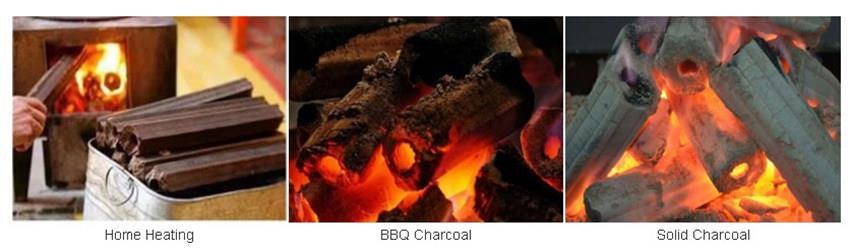

Applicable Materials
1.Home heating, barbecue food international market in great demand.
2.In industry can replacing coal or heavy oil burning steam boiler.
3.Be used as chemical raw materials deep processing of activated carbon, silicon carbide Crystalline silicon.
4.Is an essential raw material of the Carbon disulfide plant , mosquito coils factory, explosives plant, copper processing plant, foundry.
Advantage
1.No binder is needed during processing ,and so no pollution when it burns.
2.We have added 5-6 grooves in the machine to discharge the vapors and help increase density. Moreover,we add a wedding-ring in the machine ,which also helps to increase the density of wood sticks.
3.Wood sticks is easy for carrying and packaging .We have also design trolleys to help load the sticks.
4.The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.
