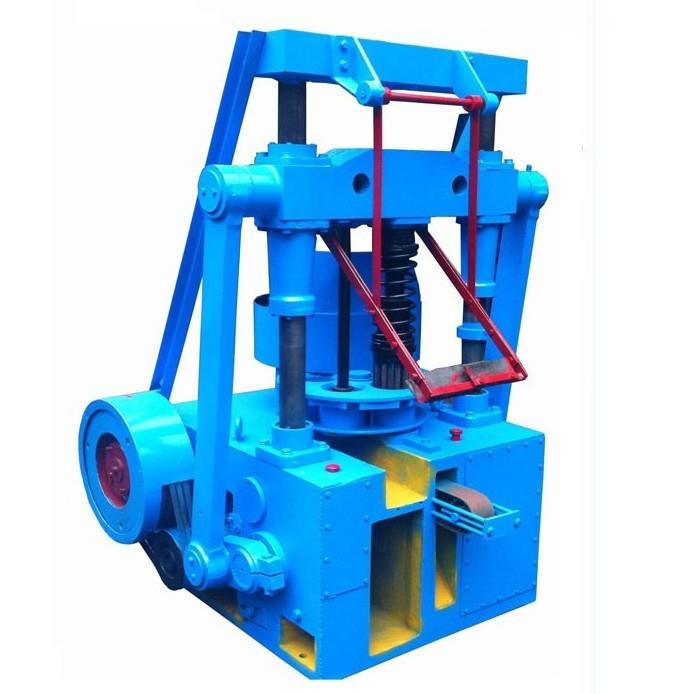

Honeycomb Coal Briquette Machine

honeycomb coal briquette machine

honeycomb machine is also called coal charcoal briquetting press, coal charcoal briquetting machine, coal charcoal moulding machine, or coal charcoal honeycomb briquette press.machine

Feature:

1.The raw materials will by formed by the punching needles of the machine and the final products have high density and easy to burn, long lasting burning as well.

2.The machine consists of frame part, driving part, feeding part, press shaping part, and finished

product delivery part.

2.1) Frame part: platen, engine base.
2.2). Driving part: motor, pulley, gear, transmission shaft. The gear is driven by the pulley connect with the motor by belts. The gear movement drives the transmission shaft. The transmission shaft drives the plate.
2.3). Feeder parts: rotation shaft, hopper, mixer etc.

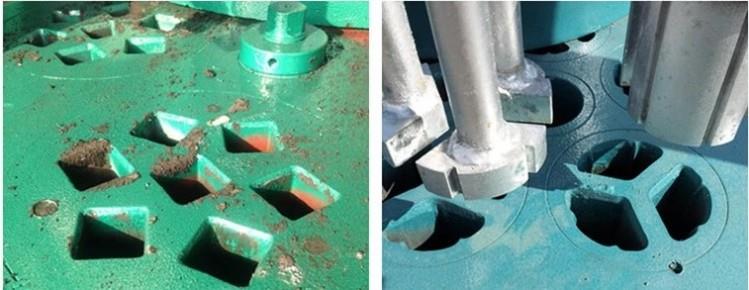

2.4). Briquette press part: four slide bars, punch, punch seat, platen, mold sole, spring.

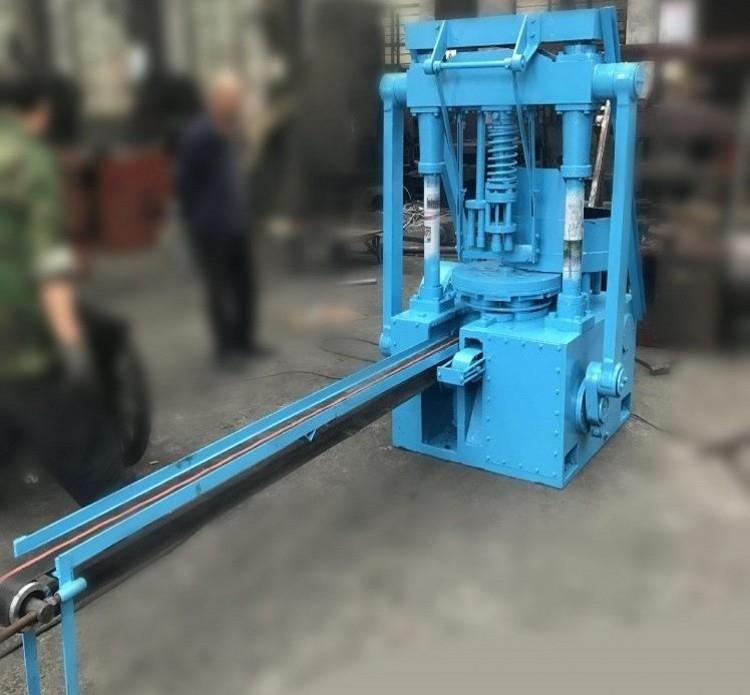

2.5). Delivery part: delivery rack, pulley, and belt conveyor.

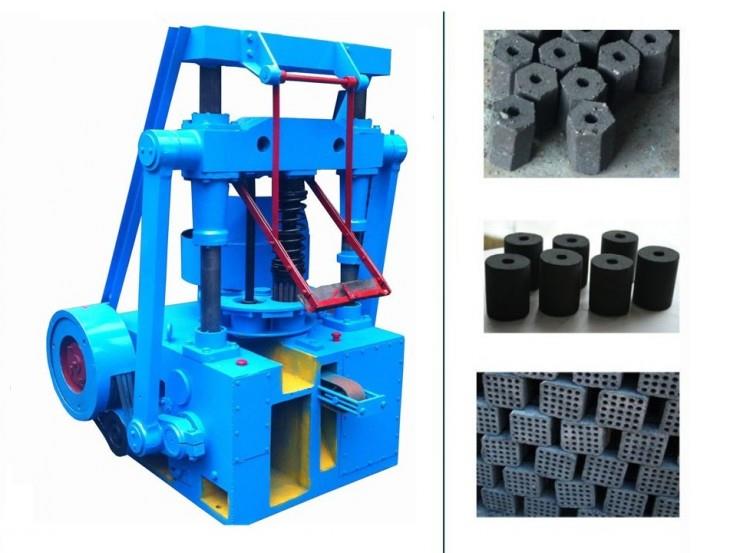

Final briquettes from the honeycomb coal briquette machine :

(1) Shapes of final briquettes: There are different shapes, such as cylindrical,round, square, flower shapes
and fan-shaped, hexagonal shape,etc. Or we can custom moulds as your requirements.
(2) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made diameter.
(3) Honeycomb height: 80±5.0mm;90±5.0mm
(4) Inside hole diameter is:14-16mm or 25mm.
(5) Hole number:16PCS ; 19PCS or required hole number.
(6) Binder formula: we have 6 kinds binder formula, we also can offer water-proof formula and instant ignite(combustion-improver) to our customers free of charge.
