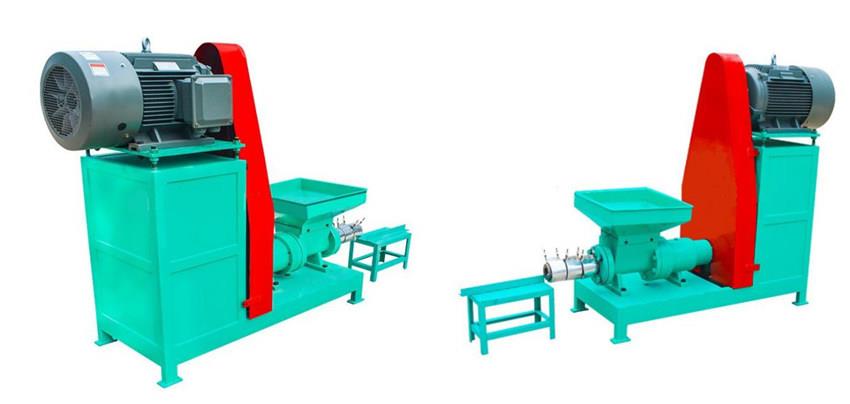

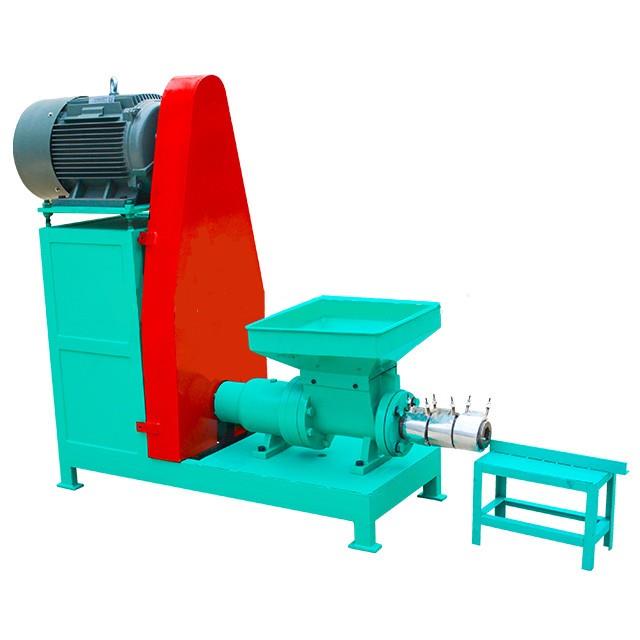

Charcoal Briquette Machine

Europe(UK,Ireland,Slovakia,Romania,etc),Asia,South America,Africa,Russia,etc.

Just contact our charcoal briquette machine, If you are interested in our machine.

Feature

●Can make stick shape,wood briquettes of different diameters ,shapes from forest wasted.

●Equipped with automatic temperature control, designed to produce high density wood briquette from biomass.

●The motor of Wood Briquette Machine can be 11kw/15kw/-3phase-380v-50hz

Technical Parameter

Model	BC-50	BC-80
Diameter	50mm	80mm
Capacity	200-250 kg/h	250-300kg/h
Power	18.5kw	22kw
Weight	550 kg	700kg
Out size	1800*600*1600mm	1800*700*1600mm
Moisture	5%-12%	5%-12%

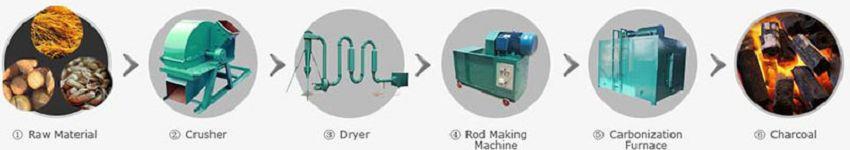

Working Flow

Step 1- Crushing: crush the raw materials into small pieces (3-5mm).

All type of Agro-Forestry waste can be used such as sawdust, wood chips, crop stalks, etc.
PS1: If your raw material size is less than 5mm, you can ignore the crush process.PS2:You can also carbonize the material without crushing and briquetting

Step 2- Drying: dry the crushed materials to reduce the moisture content below 8-12%; PS1: if the moisture of raw material is 8-12%, you can ignore the drying process

Step 3- Briquetting.

Final products from metal chip briquetting machine:

♦ Square, round, hexagonal, pentagon ( With/without edge)
♦ Hollow
♦ Diameter: 50-80mm
♦ Inside diameter: 15-20mm
♦ Length: 20-50cm
♦ Specific Gravity: 1200-1300kg/m3
♦ Calorific value:4000-4800kcal/kg

Step 4- Carbonization.

Carbonizing briquette log into charcoal without smoke,Tasteless.

No any open fire, Totally dry distillation

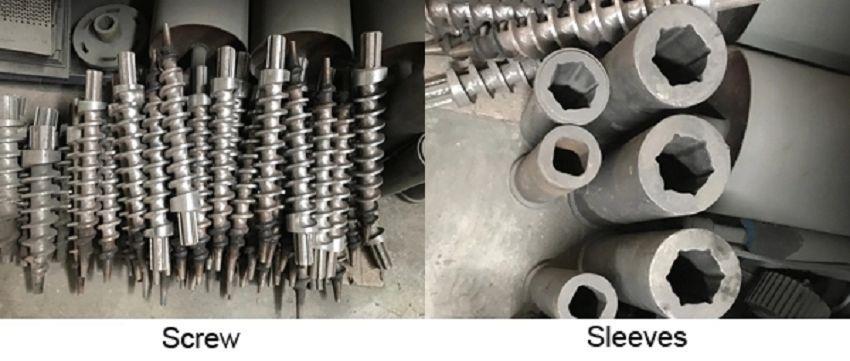

Spare Parts

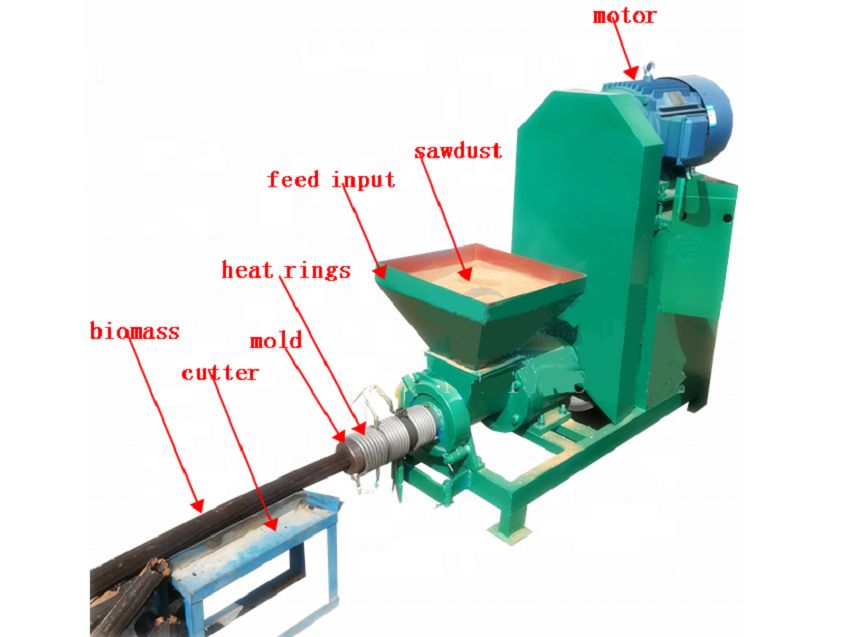

Working Principle

1)Wood briquette machine is used of sawdust, crop straw(corn stalks, large soybean straw, sorghum, cotton stalk, rape straw, peanut vine, sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, material head, sugar cane slag as raw material.

2)After a wood grinder crushed and heated in the propeller, under high pressure the raw material will processed into a hollow rod.

3)The product has a high density, small size, flammability, and can replace firewood and coal.

4)General product diameter of 50-60mm, diameter of 15-20mm, square or hexagonal

5)Form of a hollow cylindrical.

6)Also be make of spherical, granular shape, honeycomb shape.



Our Services

1)Pre-sale Service:
Design suitable product, offer the reasonable consultation, testing your material.

2)After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have perfect after-sales service system and team with professional for whole using life.

3)All order will be supplied within the stipulated period.

4)Provide customer site for your reference.

FAQ

How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.

Guaranteed
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.

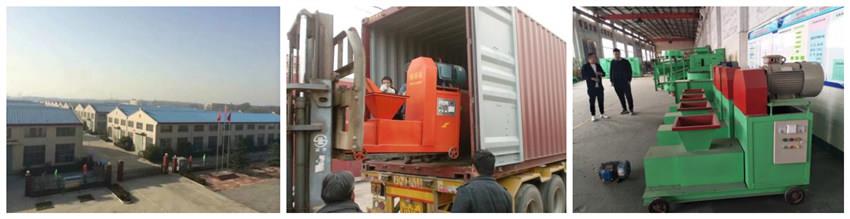

Welcome to visit our factory!

We will provide you our best equipments at the reasonable price to meet your requirements.
