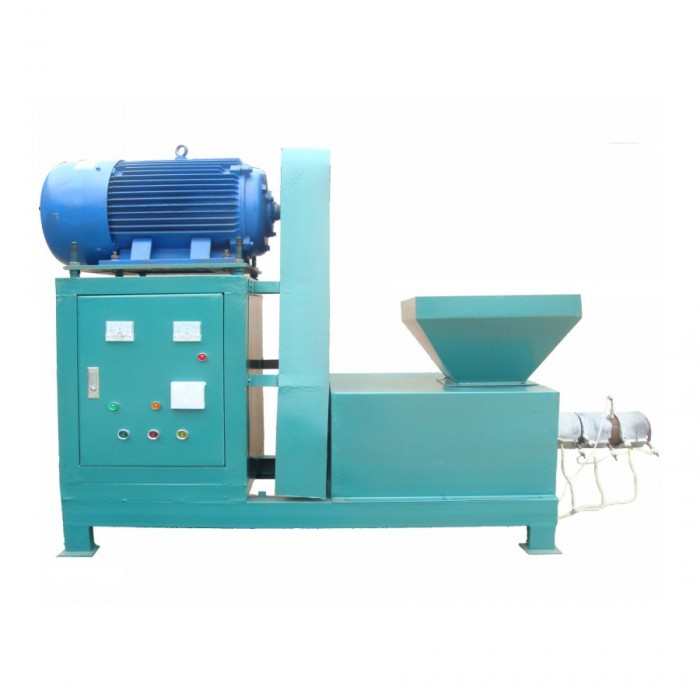

Fire Wood Briquette Press

Our this fire wood briquette press is the device of using the screw extrusion principle to squeeze the powder materials into certain density stick shape briquettes (round,rectangular, hexagonal, plum-flower, etc) . This fire wood briquette press machine can make full waste wood resources,and make waste into value, it can reduce the fuel cost and improve the calorific value with efficiency greatly.

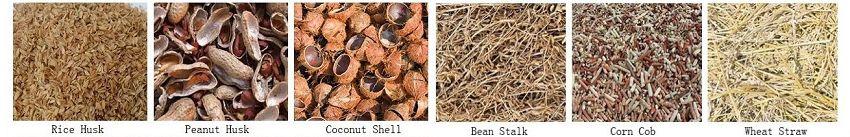

Raw Material

( Size: 3-5mm    Moisture Content : 8%-12% )

1.straw   2.sugarcane residue   3.coffee husk   4.cotton stalks   5.tobacco waste  6.mustard stalk   7.jute waste   8.bamboo dust  9.tea waste   10.wheat waste 11.palm husk    12.soybeans husk  13.rice husk   14.wood chips    15.agro waste

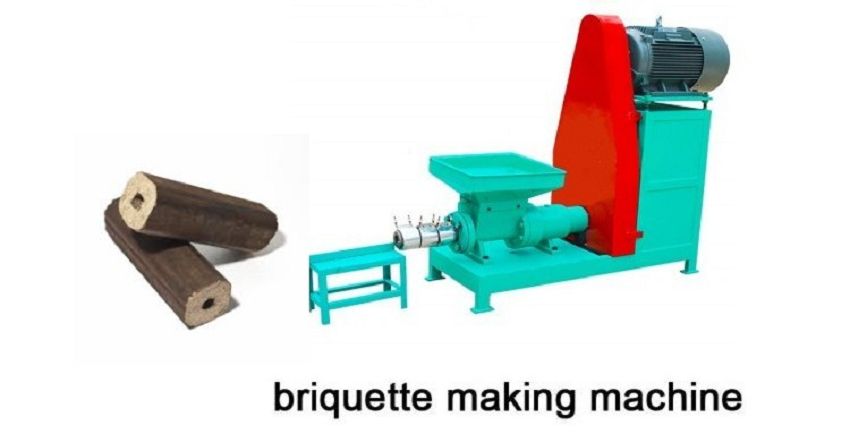

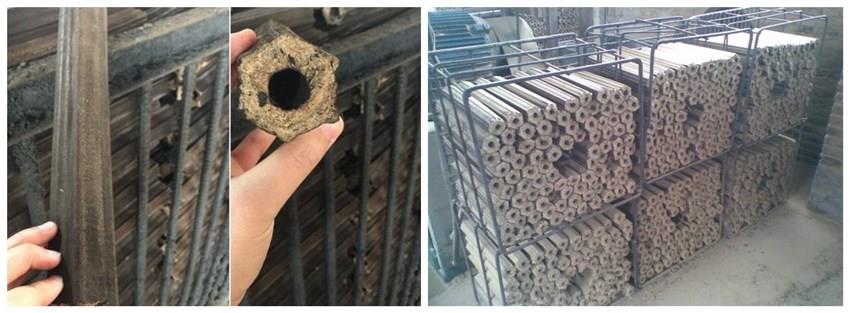

Final Product

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge.The available diameter could be: 50mm,60mm,70mm,80mm and so on

The feature of the final product

Specific gravity: 1300—1900kg/m

Calorific value:  4500—5000kcal/kg

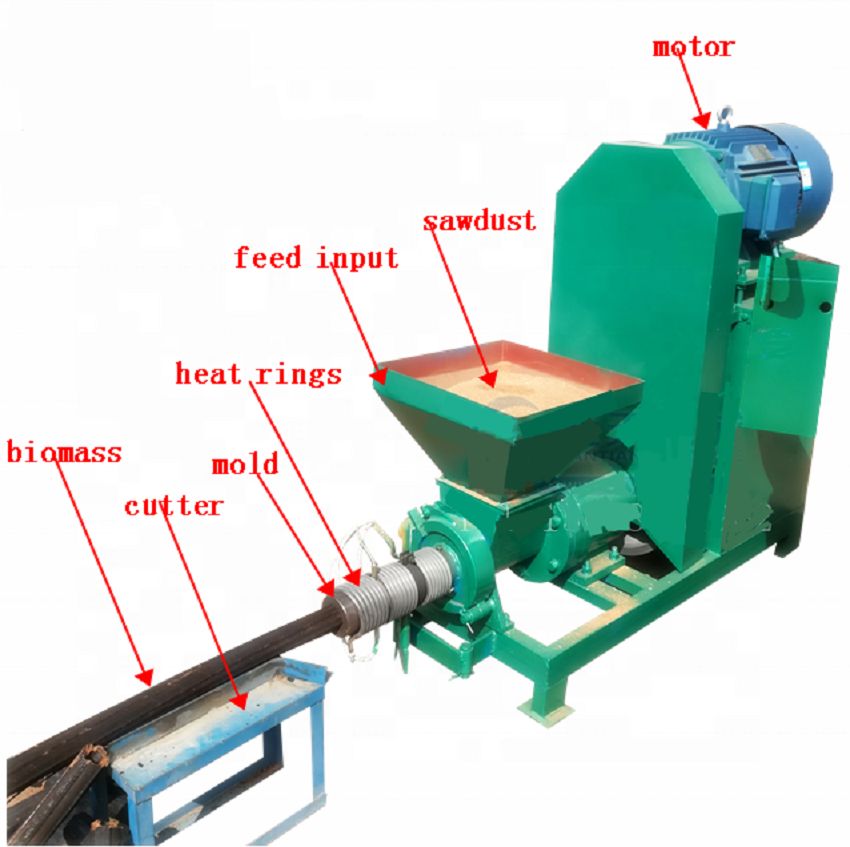

Spare Parts fire wood briquette press

Heat Ring

The heat ring of our wood briquette machine is stainless steel, which the inner part electric heating wire. For our newly designed biomass briquette machine,the heat ring is increased from 6 rings to 7 rings, that can make the surface of briquettes smoother than before. There are three sets of heat rings, and the temperatures more than 350 Celsius degree.

Propeller

The propeller is elaborately made by strong wear-resistant alloy,

which the service life has been increased by 3-4 times.It is the main part for pressing the raw material into briquettes.

Shaping Drum

The shaping drum decided the shapes and diameter of the briquettes.

Also you can have your own ideal shapes, and we will make the shaping drum according to your needs.



Technical Parameter

Model	BC-50	BC-80
Diameter	50mm	80mm
Capacity	200-250   kg/h	250-300kg/h
Power	18.5kw	22kw
Weight	550 kg	700kg
Out size	1800*600*1600mm	1800*700*1600mm
Moisture	5%-12%	5%-12%

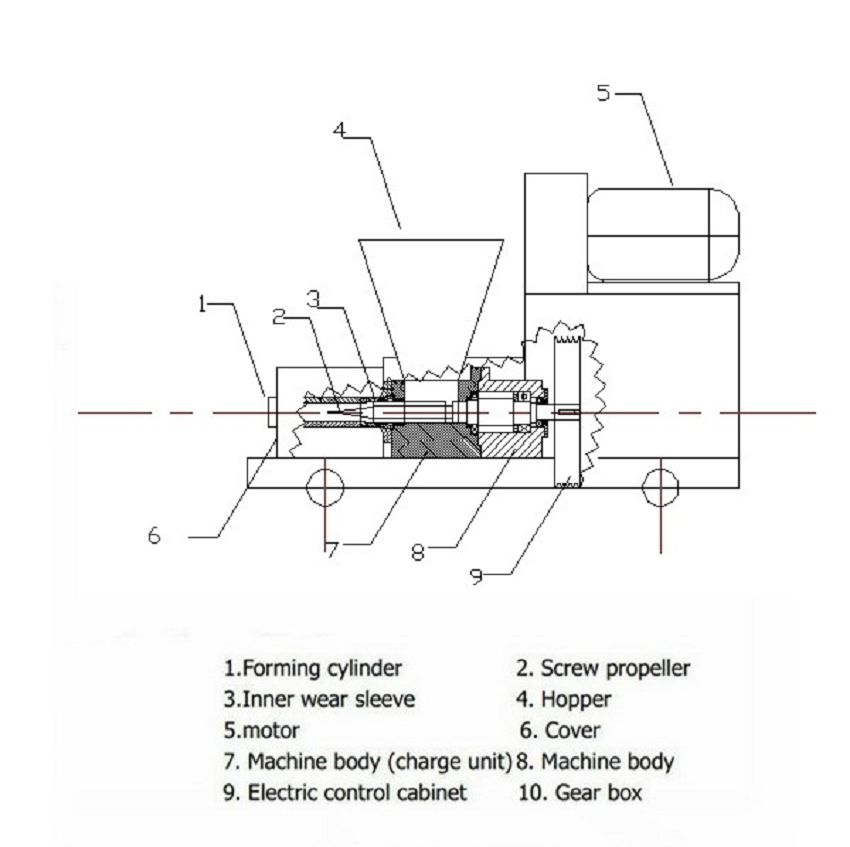

Working Principle

Briquetting is a process that biomass is compressed under high pressure and high

temperature. The self bonding of biomass to form a briquette involves the Thermos plasticflow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thusbinding, compressing the biomass to form into high density briquettes.

details specifications of biomass briquette machinery

Usage

This fire wood briquette press uses to make fuel briquette under high temperature and high pressure.

Briquettes can be used in boiler, heating& warming. After carbonization, the briquette will become charcoal, used in BBQ.



Our Service

Before sale:

Help customers choose the most suitable equipments; provide advanced, energy-saving and practical flow chart as well as responsible for designing the site.

On sale:

Inspect the product seriously before out of the factory; invite customer for commissioning in the spot and raising the objection; organize to delivery according to the contract.

After sale:

Company can send technical data for guiding to install debug the machine. We also can provide 24-hour telephone or message service.
