Wood Grinding Machine
Raw material of wood grinding machine The raw material of wood grinding machine can be sawdust, wood chips, wood logs, tree branch, wheat straw, peanut shell, rice husk, bagasse, coffee husk, paddy straw, sunflower stalk, seed husk, cotton stalk, tobacco waste, mustard stalk, jute waste, bamboo,...
Send Inquiry
Raw material of wood grinding machine
The raw material of wood grinding machine can be sawdust, wood chips, wood logs, tree branch, wheat straw, peanut shell, rice husk, bagasse, coffee husk, paddy straw, sunflower stalk, seed
husk, cotton stalk, tobacco waste, mustard stalk, jute waste, bamboo, etc.
The final crushed material is suitable for making biomass pellet, wood charcoal, animal feed, BBQ charcoal or sawdust block, etc.
Structure of wood grinding machine

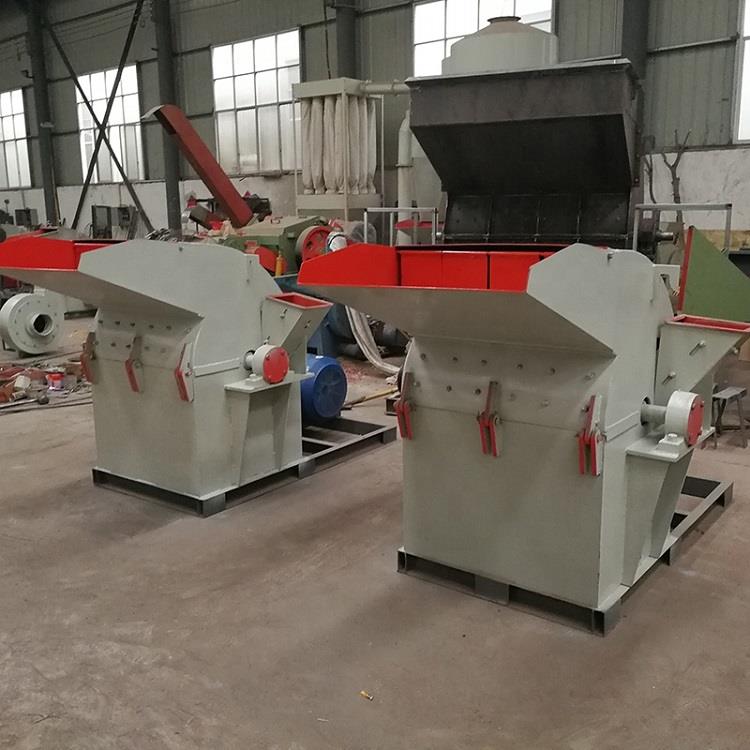

It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc. It combines both chipping and crushes in one machine, which can make sawdust in one passage, no need to use wood chipper for pre-processing of materials.
Working principle of wood grinding machinel

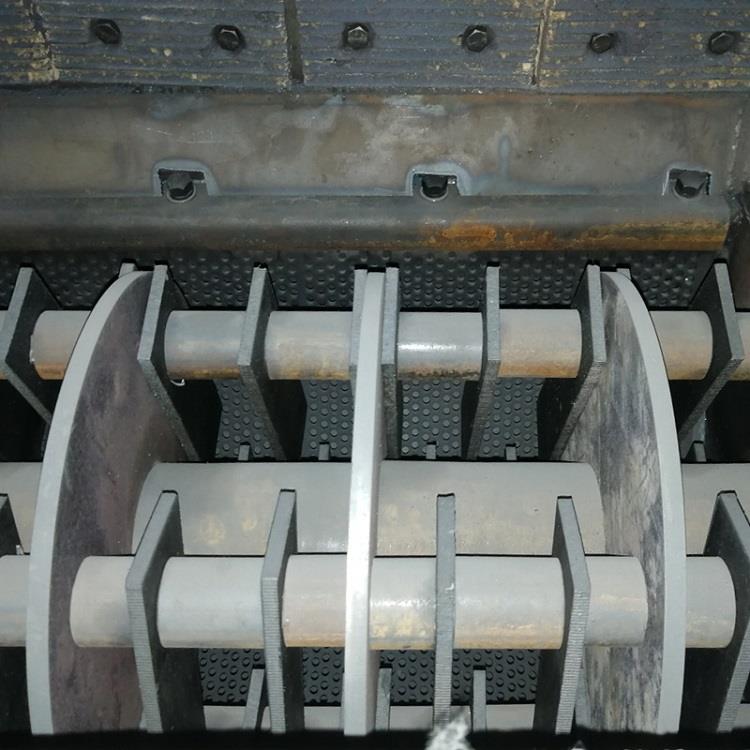

Materials put into the crushing chamber through the hopper, then it was crushed by the high speed rotation of the hammer. Under the effect of centrifugal force, the broken material along the outer edge of the rotor. by continuously hammer, tooth plate, sieve extrusion, collision, blow and rub, the material was crushed quickly.
The crushed powder will discharge through the centrifugal force of the rotor and the fan suction force. The unbroken materials will repeat the above process until it was crushed and discharge from the crushing room.

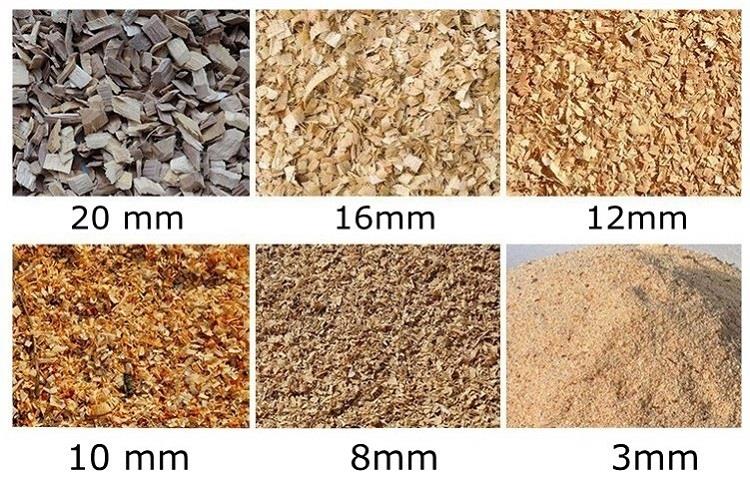

Final crushed product size: Under 5mm;
The size of insde sieving can be customized to meet different requirement.
Technical parameters of wood grinding machine
Model | FS-500 | FS-600 | FS-800 | FS-1000 | FS-1300 | FS-1500 |
Feeding Size(mm) | 500*280 | 600*300 | 800*350 | 1000*450 | 1300*450 | 1500*450 |
Crushing chamber size(mm) | 500*500 | 600*600 | 800*700 | 1000*800 | 1300*800 | 1500*800 |
No. of hammer(pcs) | 30/20 | 40/30 | 50/30 | 66/48 | 72/54 | 90/72 |
Hammer size(mm) | 180*60*10 | 180*60*10 | 230*60*10 | 230*60*10 | 230*60*10 | 230*60*10 |
Power(Kw) | 22-30 | 30-37 | 37-45 | 55-75 | 75-90 | 90-110 |
Fan power(Kw) | without | without | 7.5 | 11 | 15 | 15 |
Capacity (Kg/h) | 500-800 | 800-1200 | 1500-2000 | 2000-3000 | 3000-4000 | 4000-6000 |
Features of wood grinding machine
1.Mechanical automatic feed: Easy to operate and with high production efficiency.
2.Stable working: Continuous grinding, dynamic balance method, safe and reliable.
3.Durable: steel components, high power self-aligning bearing and with long service life.
4.High efficient and high performance.
5.Crushed size: Can be custom-designed to meet customer's demand.
6.High crushing rate wood crusher machine with CE certification.

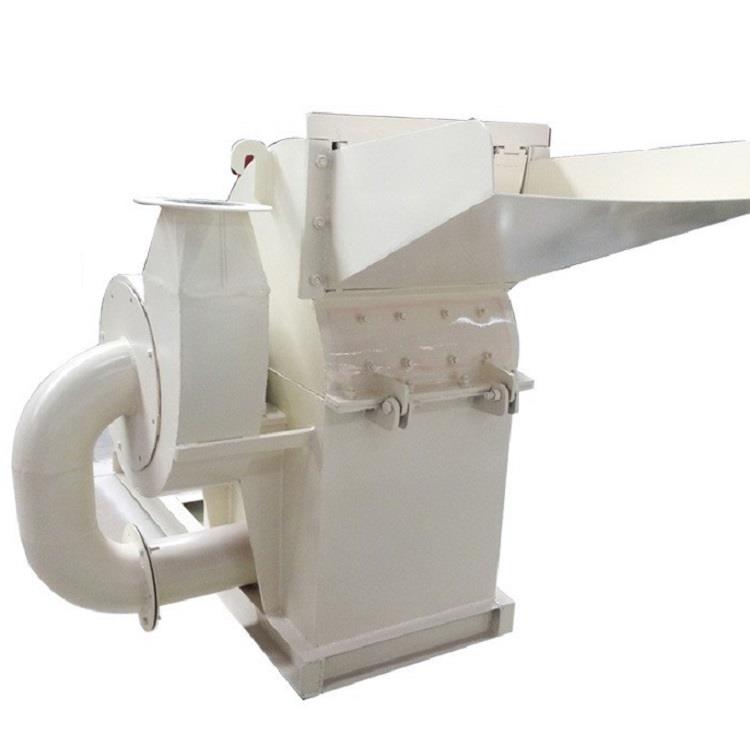

7.It equipped with control cabinet and cyclone, which with clean working environment and easy operation.
