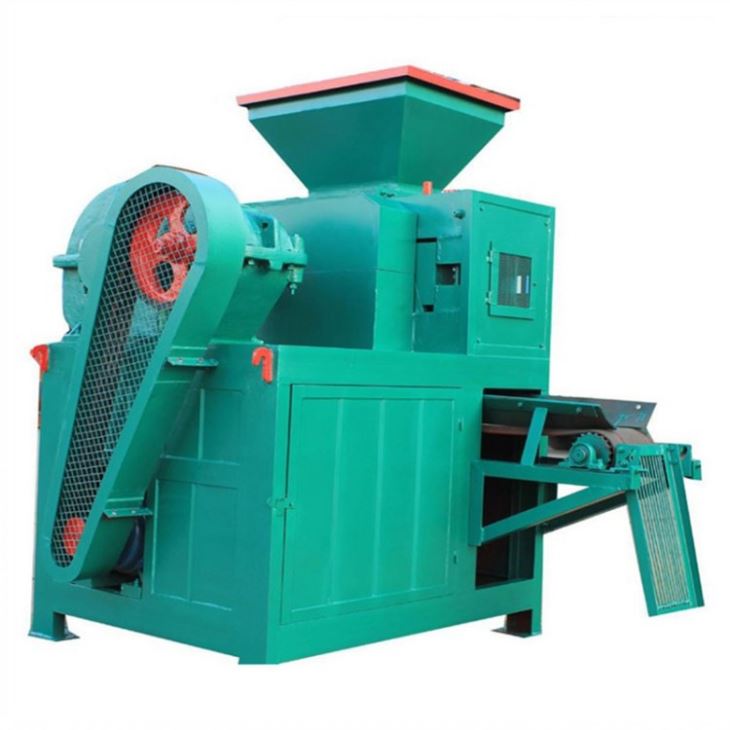

Ball Press Machine
Ball press machine is specially designed according to the characteristics of charcoal powder specially used for charcoal/coal powder industry, mainly used in producing kindle carbon and charcoal briquettes.
Send InquiryBall press machine is specially designed according to the characteristics of charcoal powder specially used for charcoal/coal powder industry, mainly used in producing kindle carbon and charcoal briquettes.
Feature
●According to customer requirements, it can be pressed into different shapes of briquettes, such as ball-type, goose-type, pillow-type, square, flower-type, oval-shaped and so on.
●Stable speed, high molding rate, beautiful appearance.
●The pressure is high, the products that are pressed out have high quality and high density.
●Smooth mold release, low noise.
●Stable structure, simple operation, easy maintenance.
Technical Parameter
|
Model |
Roller Dia(mm) |
Roller Width |
Capacity (t/h) |
Power (kw) |
Dimension (m) |
|
BL-290 |
290 mm |
200 mm |
1-3 |
5.5 |
1.6*1.2*4 |
|
BL-360 |
360 mm |
250 mm |
4-6 |
7.5 |
2.1*1.3*1.76 |
|
BL-400 |
430 mm |
280 mm |
6-8 |
11 |
2.3*1.53*1.9 |
|
BL-500 |
500 mm |
300 mm |
8-10 |
15 |
2.6*1.75*2.1 |
|
BL-650 |
650 mm |
336 mm |
10-15 |
22 |
3.42*2*2.2 |
|
BL-750 |
750 mm |
400 mm |
15－20 |
37 |
3.7*2.55*2.6 |
|
BL-850 |
850 mm |
500 mm |
20－25 |
45 |
3.9*2.6*2.7 |
|
BL-1000 |
1000 mm |
650 mm |
25-30 |
55 |
4*2.8*2.8 |
Raw Material
carbon black,charcoal,coal,coke,iron powder,mill scale,burnt lime,aluminum dross,iron ore fines,sodium carbonate,flue dust,manganese ore fines.

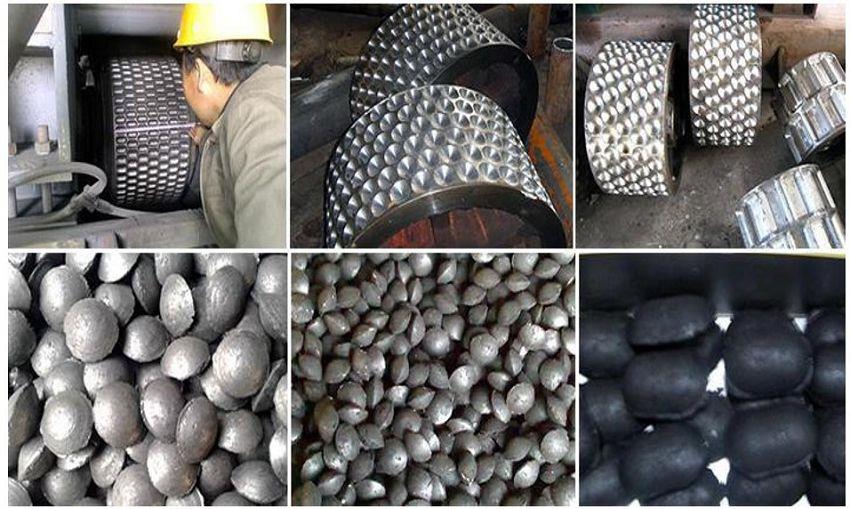

Moulds and final Products
1.Finished products usually 20-60mm.
2.Final products are smokeless, non-toxic, none peculiar and environmental protection.

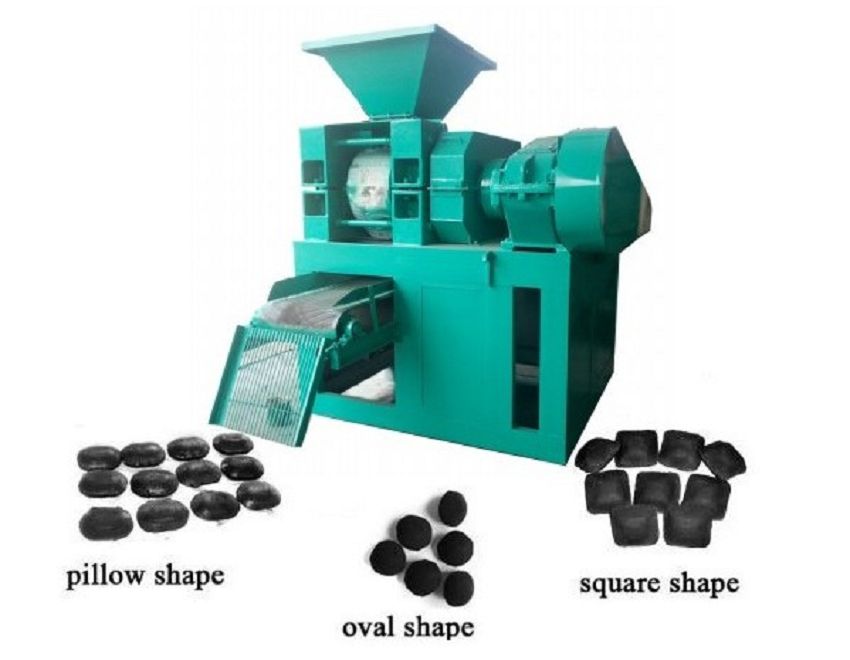

3.The shape can be Square, ball egg-shaped, round, oval, and column, strip-type, elliptic type,pillow type and other special shapes by customizing the matching molds.

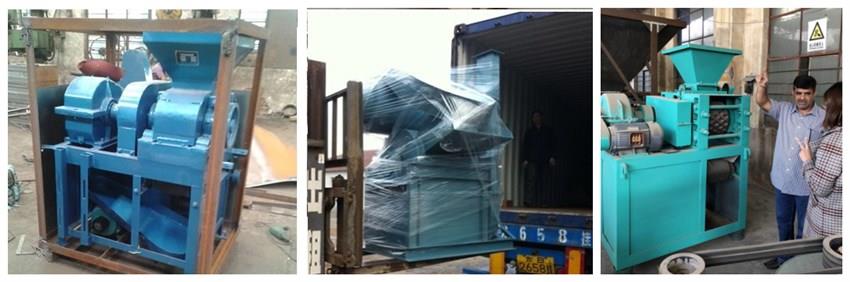

Packaging & Shipping
Usual single machine will be packing by fumigation plywood case.
Export standard container 20GP, 40GP, 40HQ, etc for production line.
Other packaging according to your special requirement.
We Could provide customized service for clients
Binder:
Professional advice for you. Organic and inorganic binder: starch, molasses, pitch, asphalt, sodium silicate, gypsum, magnesia, etc.
Hydraulic system:
Hydraulic system could supply higher, stable pressure and protect machine from the damage of impurities entrained in the raw materials.
Feeding system: According to the property of raw materials, gravity feeder or force-feeder is equipped.
Dry/wet press:
Some materials require no binder added. In this case, dry press is necessary.
Size and shape:
We can design the pockets on the surface of roller to meet the request for size, shape, capacity.
