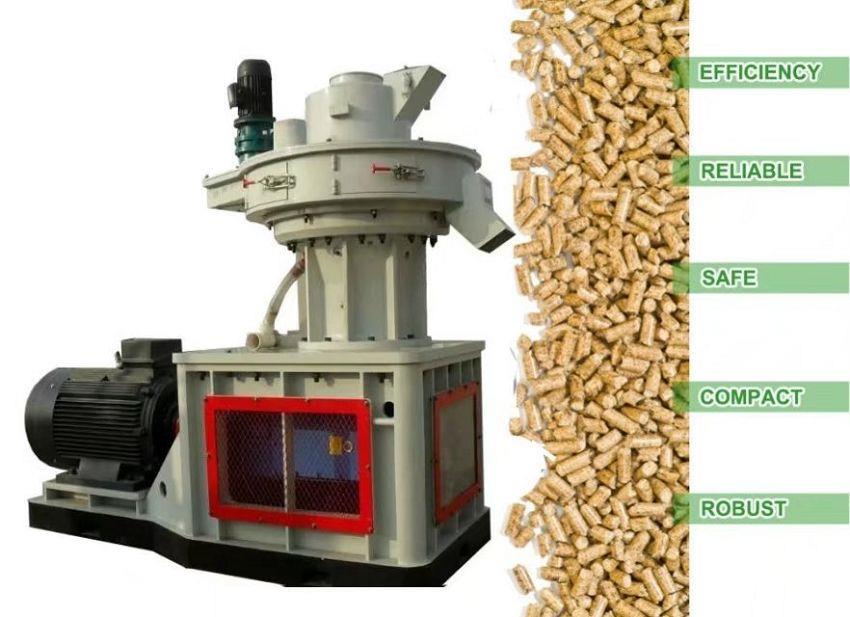

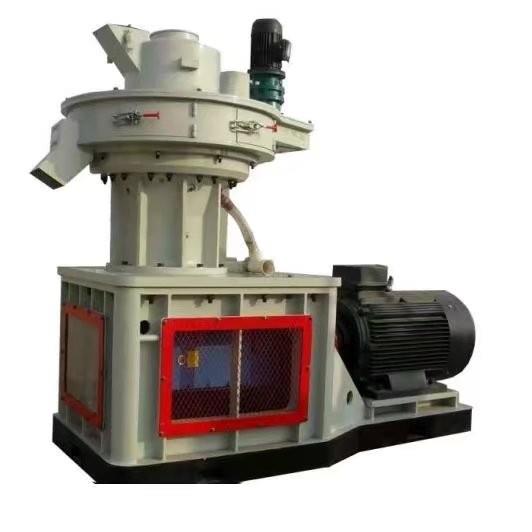

Rice Husk Pellet Machine
Rice husk pellet machine is used for made pellets from different kind of biomass materials ,like wood ,rice straw into pellets.
Send InquiryRice husk pellet machine is used for made pellets from different kind of biomass materials ,like wood ,rice straw into pellets.
Main Features
●Compared with the traditional one, it add one extra rows.So the capacity is bigger than traditional one, for the same power.The capacity can increase about 10%-15%.In other words, the same power, with more holes ,so with bigger capacity.
●The motor is installed parallel with the main shaft.It can decrease the energy cost .More power than the one traditional one.
●Gear Box is cast, Its advantage has strong, good heat dissipation.
●Bearing room structure is smaller than before.Make the whole structure more compact.So it can guarantee the pelletizing room working steady.
●Gear Box with big module increased more power, more stability, 8-10 times than before.
●Using New Roller, called unlock closed roller.It can fill lubrication oil one time per day.It also can be choose to fill one time per week.
Raw Material
To make the pellet, the material can be sawdust, rice husk, sunflower seed husk, peanut shell and other fruit shell; branch, trunk, bark and other wood waste; a variety of corp straws, rubber, cement, ash and other chemical materials. This type pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.

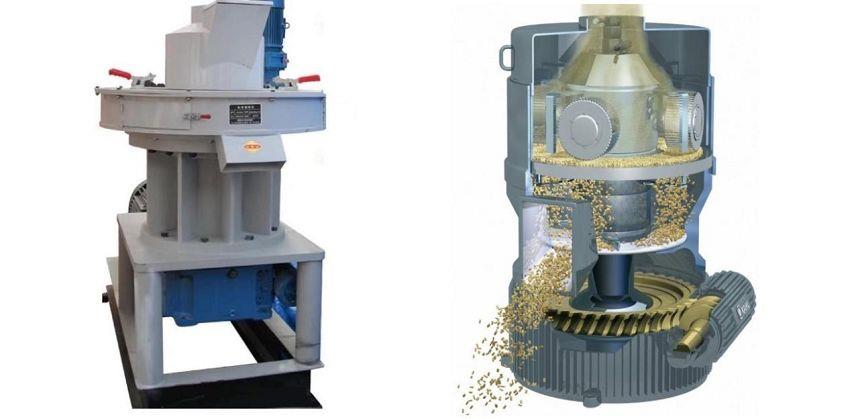

Working principle
●Vertical feed and directly in place.
●Die static ,the roller rotating,and material centrifugal, evenly around.
●Double layers die,up and down dual use,cost efficiency ,also dual-uses,high energy saving.
●Ring die, vertical structure,in favor of the thermal cooling of granulation chamber.
●Separate discharge device, ensure the forming rate of pellets.
●24 hours working with automatic lubrication
Technical Parameter
Model | Die Dia (MM) | Pellets Dia (MM) | Dimension (MM) | Weight (T) | Capacity (T/H) | Power(KW) |
K-450 | 450 | Φ4-12 | 2400*1000*2100 | 4.5 | 0.8-1 | 75+1.5+0.55 |
K-560 | 560 | Φ4-12 | 2600*1300*2300 | 6.1 | 1-1.5 | 90+1.5+0.55 |
K-650 | 650 | Φ4-12 | 2950*1300*2450 | 9.5 | 1.5-2 | 160+1.5+0.55 |
K-850 | 850 | Φ4-12 | 3350*1450*3180 | 14.5 | 2.5-3.5 | 220+3+0.55 |
K-1050 | 1050 | Φ4-12 | 4200*1850*3700 | 22.5 | 4-6 | 315+5.5+3 |

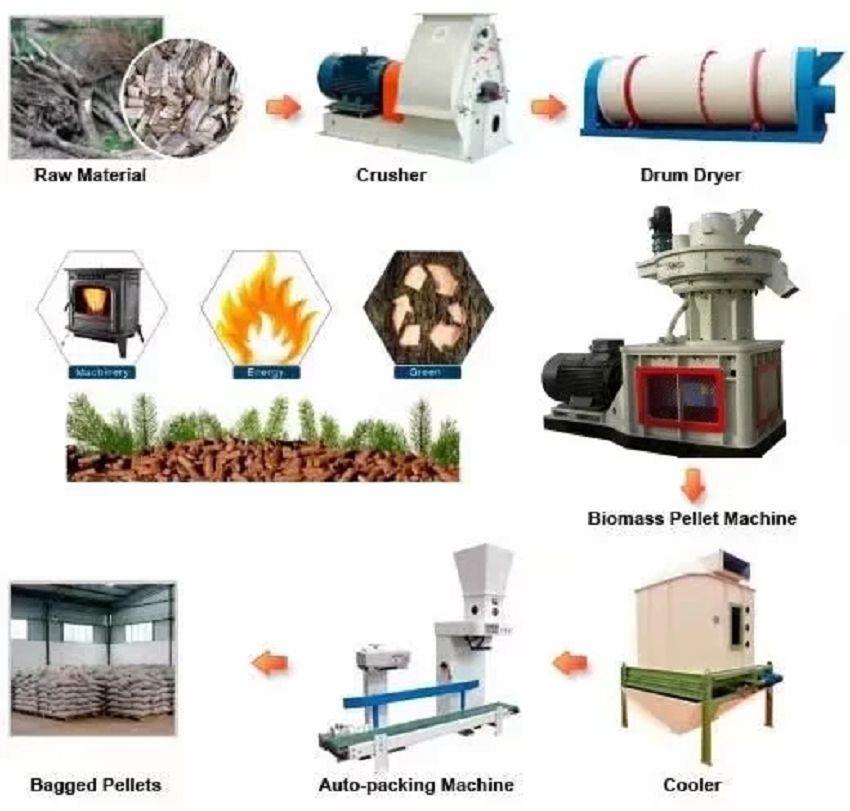

Wood Pellet Machine Production Line
1.Chipping section, chipping wood into wood chips.
2.Grinding section, grinding wood chips to sawdust.
3.Drying section, drying sawdust to moisture content 10-15%, for pelletizing, it requires materials moisture within 10-15%.
4.Pelletizing section, pressing sawdust into biomass pellets.
5.Cooling section, cooling biomass pellets to room temperature, after pelletizing, the pellets temperature at about 60℃, for storage, it need cooling.
6.Packing section, packing biomass pellets into bags for easy transportation and storage.Client will choose the weight of per bag pellets different according to requirement.
Buying Guide
If you are looking for pellet machine ,want build your own pellet plant ,you can tell us below request:
1. What’s your raw material is ?
2. Raw material size mm,
3. Moisture content %
4. Final pellet diameter mm
5. Required capacity per hour?
6. Local voltage V/HZ
7. Whether need cooling and packing machine .
Upon we get your exactly request, we propose our plan with offer in short time.
 |  |  |
| Monitoring Window | Automatic Lubrication | Mould system |
FAQ
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every grinder before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
Guaranteed:
If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
How about price?
Yes, we are factory and be able to give you lowest price below market one, and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”, if you like bargain and factory price is not low enough as you think, just don’t waste your time.Please trust the quotation we would give you, it is professional one.
Welcome to visit our factory!
We will provide you our best equipments at the reasonable price to meet your requirements.
