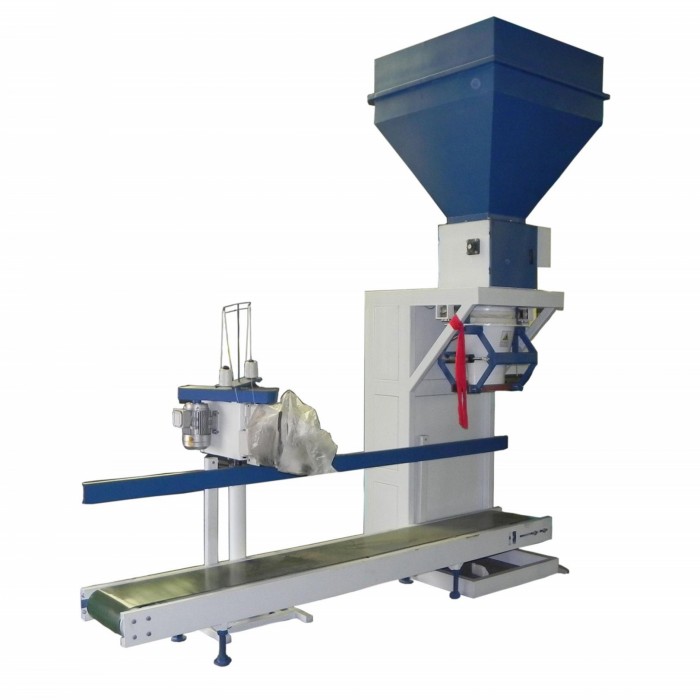

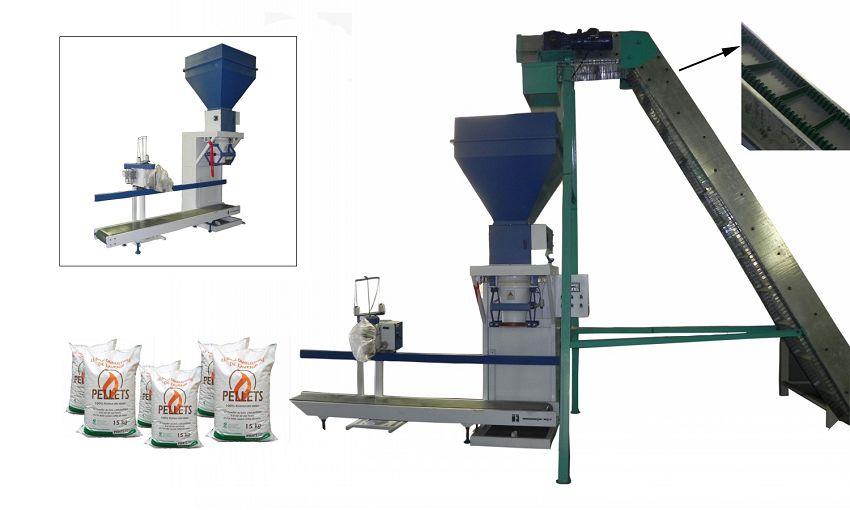

Wood Pellet Packing Machine
Wood Pellet Packing Machine adopts belt feeding model with advanced frequency conversion technology.
Send InquiryWood Pellet Packing Machine adopts belt feeding model with advanced frequency conversion technology.It is composed of four parts: automatic weighing and packaging machine, conveying device, sewing machine and feeding machine.
The Pellet packing machine is mainly suitable for quantitative packaging of granular, granular powder, strip, block, tobacco and other materials. Such as: fertilizer, feed pellet,biomass pellet, Chinese medicine decoction pieces, Chinese medicine granules, premix, washing powder, snack food, candy, melon seeds, peanuts, dried fruit, roasted seeds and nuts, salt,seeds, grain, hardware and other granular materials Quantitative filling packaging.
Product Name | Pellet packing machine |
Application Materials | Granular materials such as plastic particles,feed, fertilizer(urea etc), grain,sugar, bean, rice |
Display Resolution | 5g, 10g |
Weighing Range | 10-50kg/bag or customized needs |
Precision | +/-(0.1-0.2)% FS |
Packing Capacity | 240-360bags/hour or more fast |
Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
Power Supply | AC220V/380V, 50HZ, 1P/3P |
Air Source | 0.5-0.7 MPa |
Power | 3KW-4KW |
Working Temperature | -10~40 ℃ |
Relative Humidity | ≤90% RH(Non-condensing) |
Features
●The machine needs manual assistance to bag, automatic weighing, bagging, filling, automatic conveying, sewing.
●Through the instrument control, to ensure the speed and accuracy of cutting.
●Solve the problem of packaging of special chemical raw materials, with wide application range and simple operation.
●Adopt high-precision sensor and high-intelligence weighing controller with high measurement accuracy and stable performance.
●The contact part with the material is made of stainless steel, which has high corrosion resistance.
●Electrical and pneumatic components are imported components with long service life and high stability.
●The control cabinet is sealed and suitable for harsh dust environments.
●Automatic correction of material tolerance, zero point automatic tracking, overshoot detection and suppression, over and under alarm.

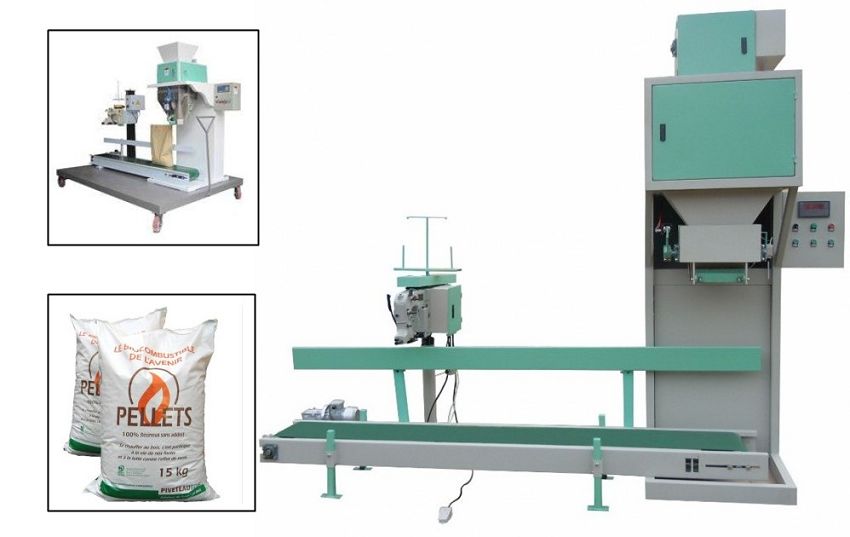

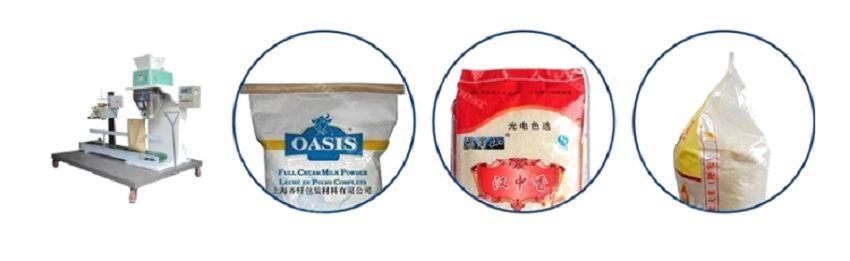

Bag type
Our packing machine can working with the automatic sewing machine closed the woven bags, Kraft bags, paper bags or sacks by thread stitching and automatic thread cut.
Or the heat sealing machine for lining/ plastic bags sealing.
Application
●Semi automatic bag weighing scale 10-50kg pellet feed packing machine suit for weiging filling bagging grain sugar wheat corn into open mouth bags then closed by sewing or heat sealing.
●The weight from 10kg-70kg are available. packing range 120-180bags/hour, 240-360bags/hour and 400-500bags/hour
●The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, Kraft bags, sacks etc.

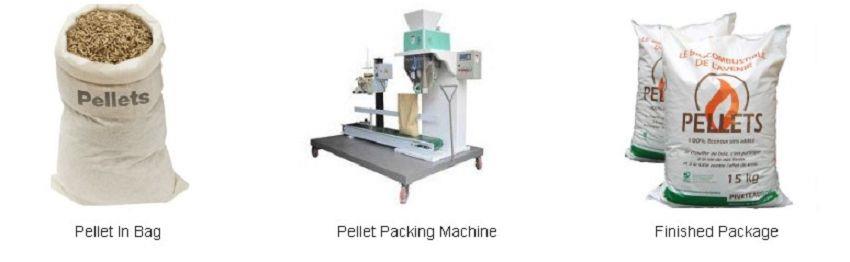

Process steps of Fuel pellets packing machines bagging machinery used for fuel pellets:
Manual bag placing → Auto filling → Auto weighing → Auto bag discharge → Auto bag conveyor → Bag sealed → Next round
Characteristics
●Installation 3pcs load cell, each load cell max weight 200kg, IP67 grade, high weighing accuracy, working more stable
●Dual control system, the CHIMEI weighing instrument and PLC control system
●Color touch screen HMI, easy operation
●PLC system operation by 10" touch screen
●Installation 2pcs of proximity switch and 2pcs cylinder, bag clamp more tighter, more safe
●Automatic bag sewing and sewing conveyor speed adjustable
●Parts of famous brand, such as Delta, Schneider, CHNT, AirTAC

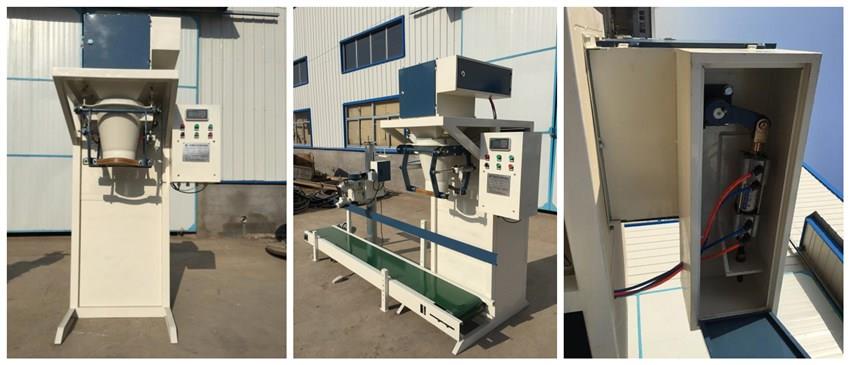

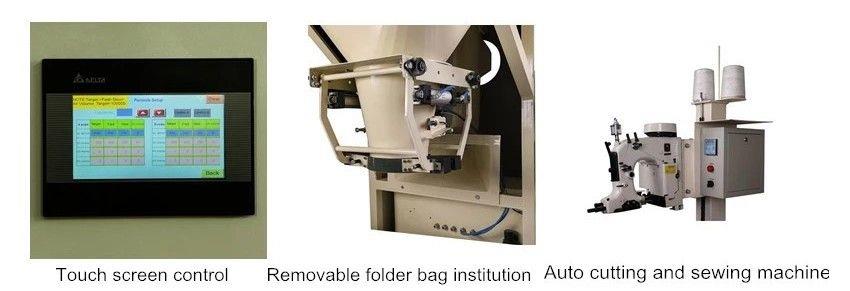

Detailed parts of the packing machine
●Our packaging machine use the PLC system of 10" full color touch screen panel, dual English/Chinese interface.
●The machine installation 3pcs of high precision load cell provide high weighing accuracy, also the bag clamping
●Device installation 2pcs of cylinder and 2pcs of sensor switch, bag clamped more tighter, bag giving more safe.
●The bagging machine working with the automatic bag sewing machine with automatic start/off and single needle
●Double thread automatic cutter, the sewing data can be display and record.
Packing Machine Structure & Working Process
●The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,
●The weighing hopper installation 3pcs load cell to weighing, manual giving the bag to the packing machine bag clamp
●Device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag,
●Bag release and on conveyor to the sewing machine for bag closed by thread stitching.

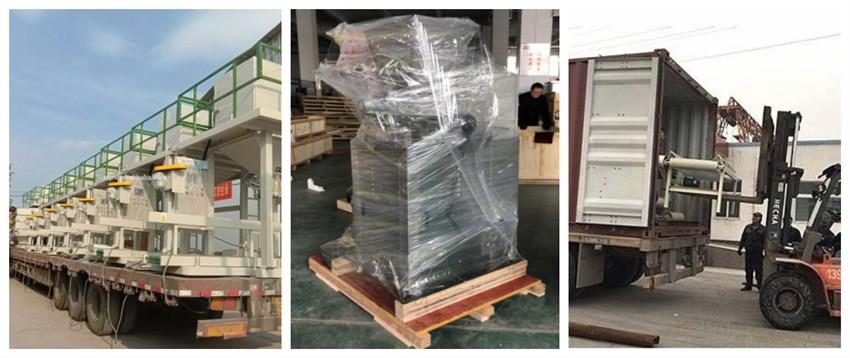

Packing & Shipping
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
FAQ
Q1: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are available, we have more than 10 person engineers team and R&D team.
Q2: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
