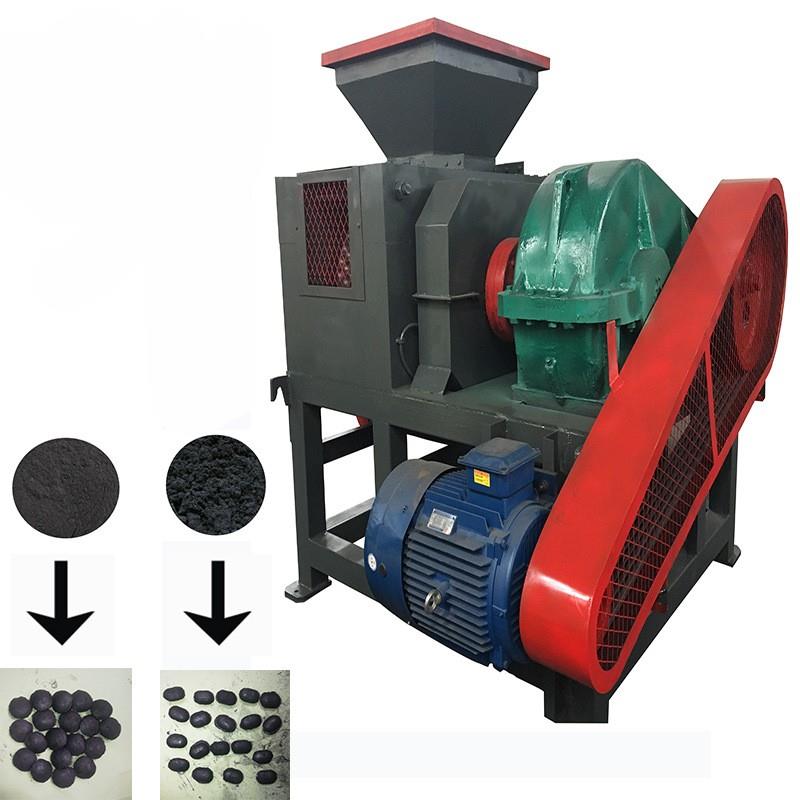

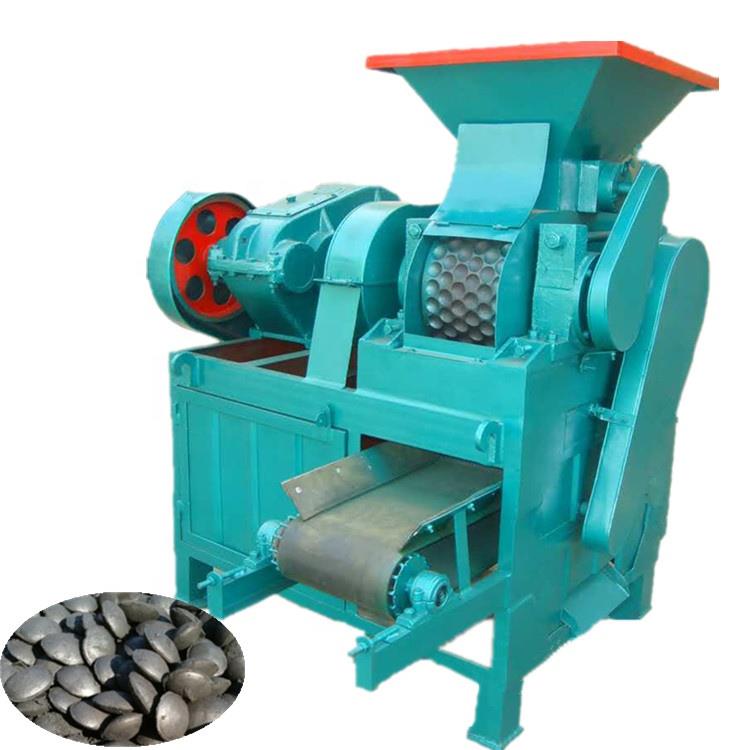

Coal Briquette Ball Press Machine

Machine Detail

Coal Ball Press Machine is widely used to making coal powder into balls for boiler, furnace, home heating, etc. It is also suitable for other raw materials such as gypsum,fluorspar,charcoal, coke, iron fines, chrome ore and other kinds of powder materials.

Working Principle

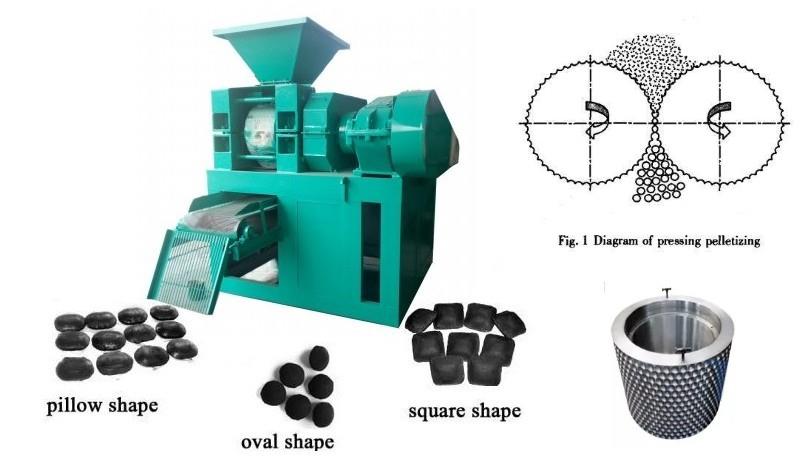

This series of briquette machine will feed the powder on to the two pressure roller through the reducer. The material will be pushed into contact point of two rollers while two rollers are rotating. When the  material reach contact point,  the pressure of two rollers has reached the peak. Tremendous pressure will press the powder size material to ball size according to mold, then final coal ball will drop on conveyor for discharging outside.

Raw material of charcoal powder ball press machine
1.Raw material size should be smaller than 5mm. (If larger, crusher have to be used).
2.The best moisture for briquette is 6%-10%.
3.The raw material include: mineral powder, coal powder, charcoal powder, iron powder and ect.

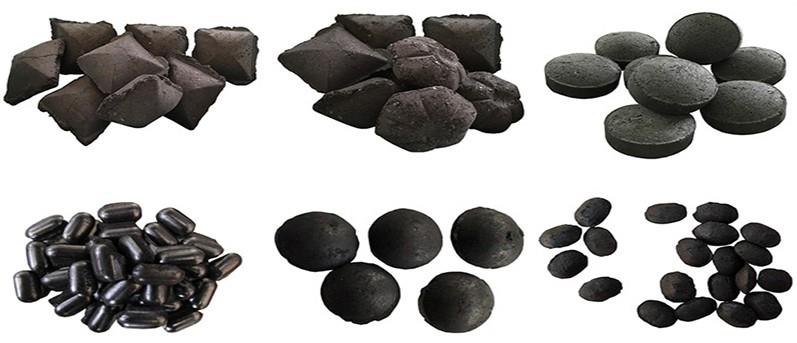

Final product

The final coal ball or charcoal ball is mainly used for boiler heating or used at home for cooking, BBQ.Size of the ball can be round or square according to customer's requirement.

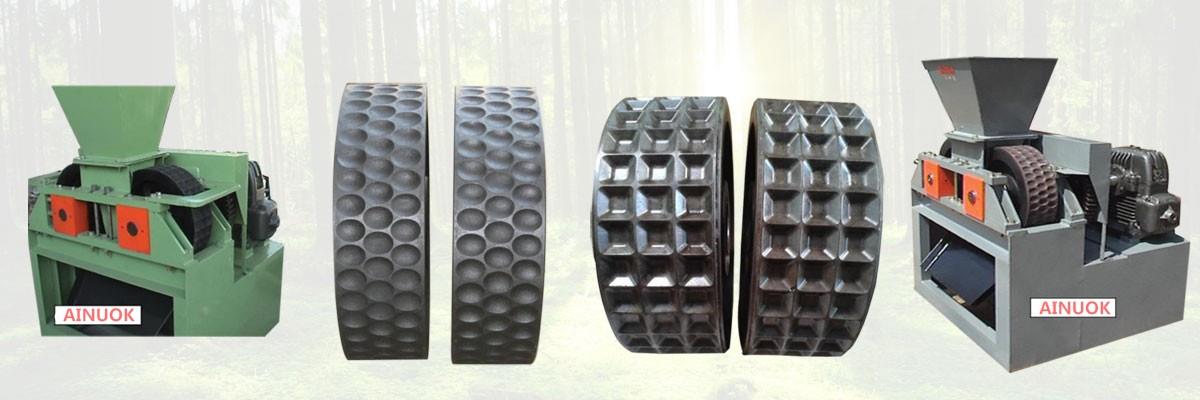

Different mold size can be customized.

Final briquette size : 10-60mm.Which can be customized.

Feature of machine
1. Energy saving and environmentally friendly, turn waste into treasure.
2. Reasonable structure ,easy in operation,installation and maintain. Low price, less power consumption, easy to move.
3. Running in a high automatization and intellectualization, no pollution, high efficiency, high-performance.

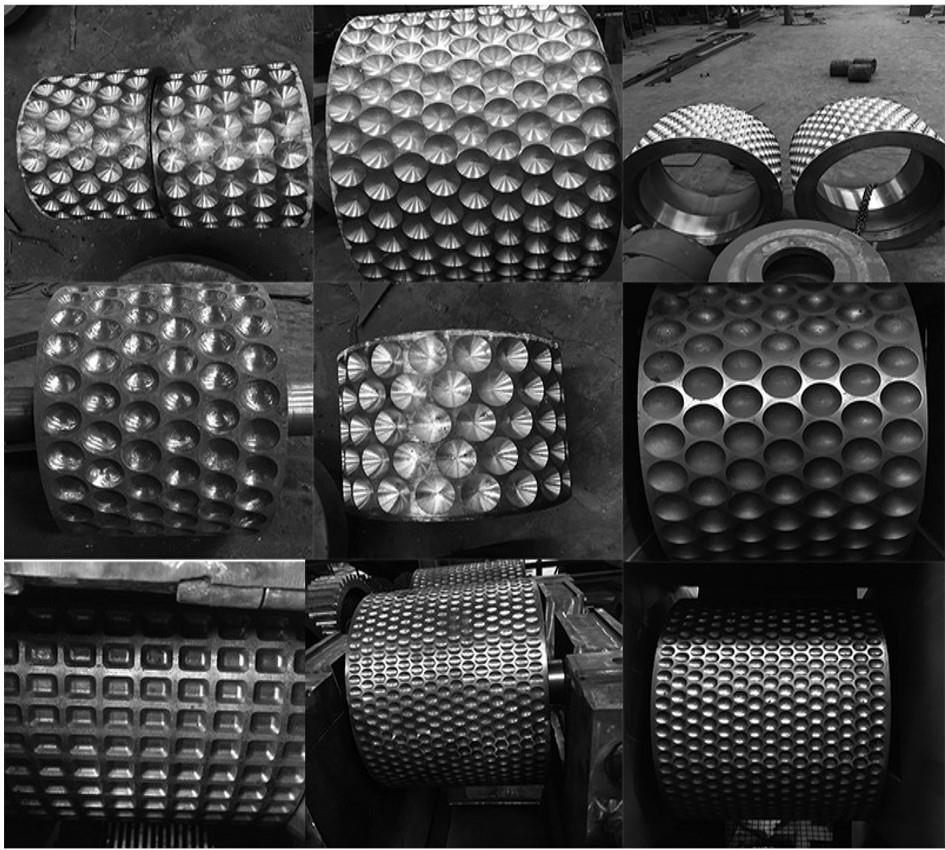

4.The roller material adopt forging steel,high precision andabrasionresistant, the rigidity reach 59-62HR after prempring,the working life can reach 12 months.

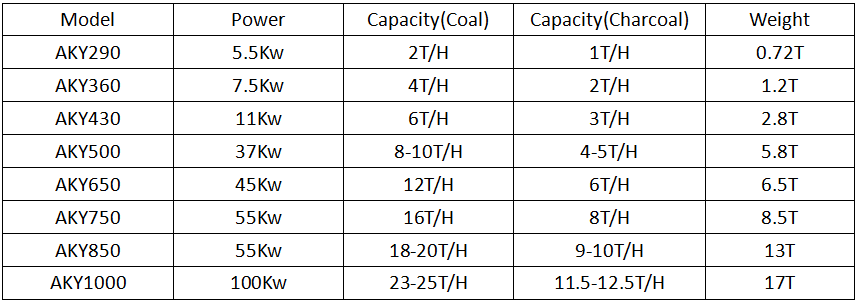

Technical Parameter

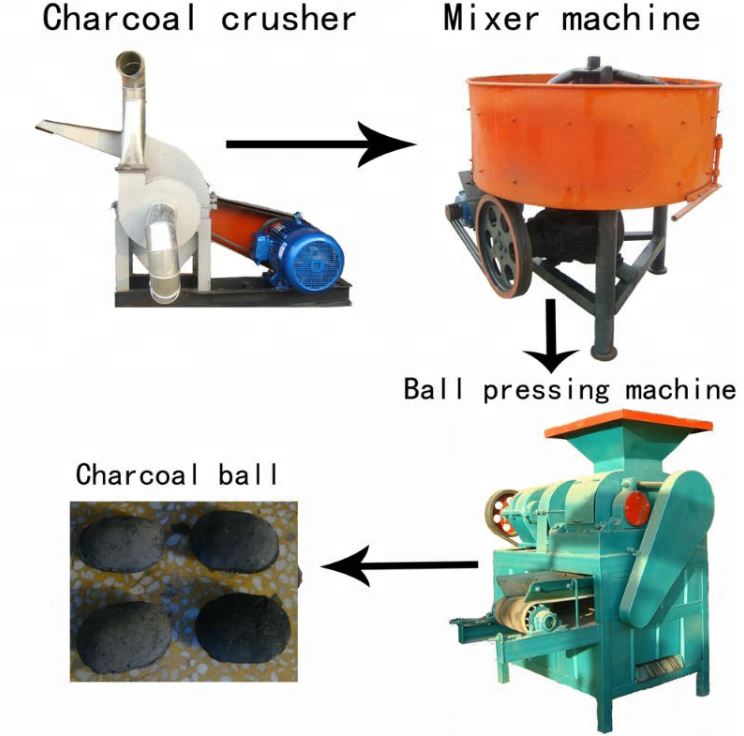

Flowchart of ball press production line

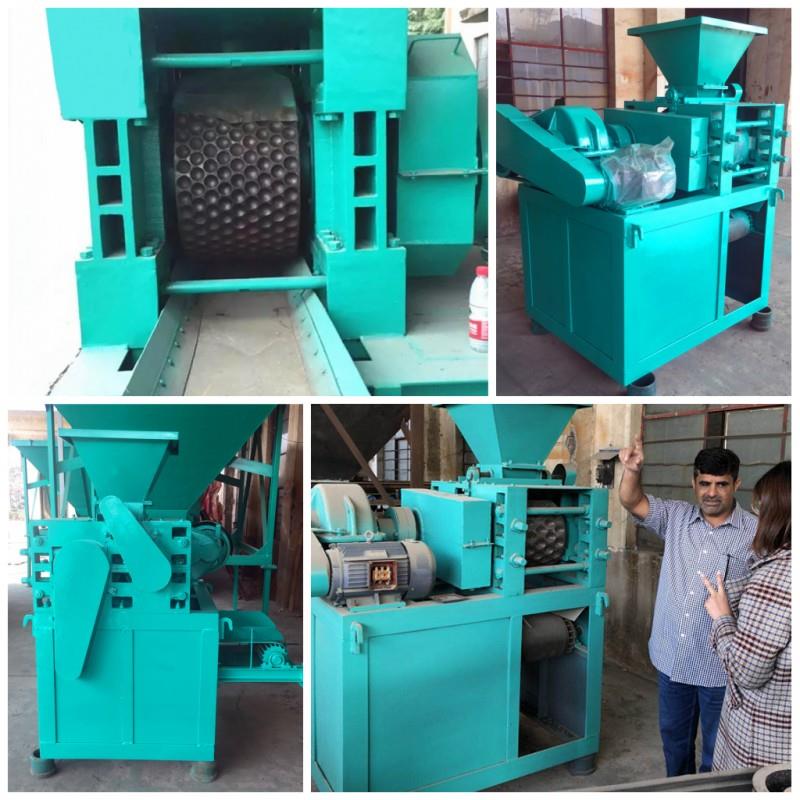

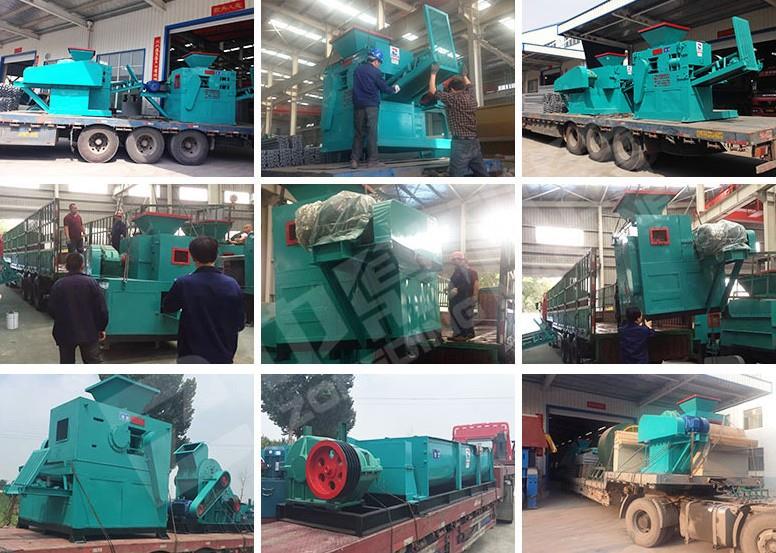

Client visit and transportation of machine

Our services
Before-sale services
1. Full time on line and in-time reply to your inquiries.
2. Recommend most suitable machines and line according to customer’s requirement.
3.Introduce details of the machine with pictures or video for your good acknowledgement.
Sales service
1. Customized machine according to your request.
2. Test and inspect every machine with strict quality control.
3.Packing with standard export wooden box after you confirm the machine
After-sales service
1.Offer the professional engineer assist you to use the machine.
2.Offer technical support and professional engineer help you solve problems while using it.
3.Quality warranty for one year. Free repair for quality problem during one year.Spare parts only charge cost price after warranty.
