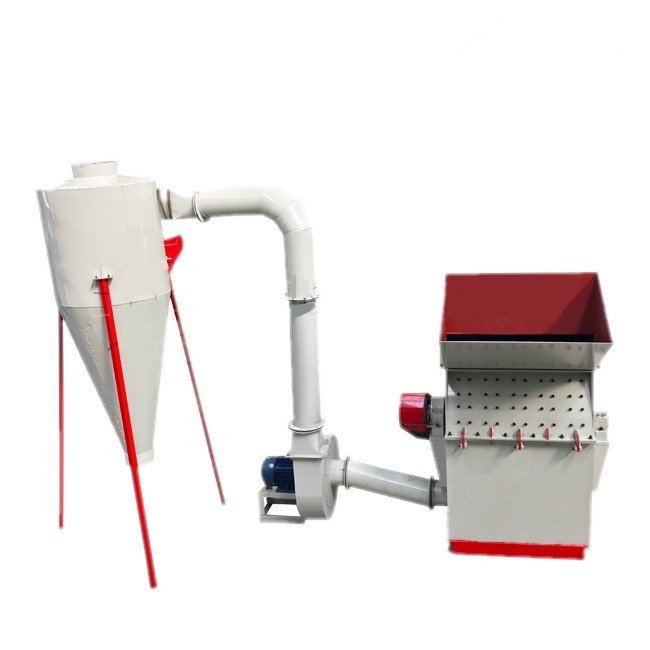

Wood Hammer Mill

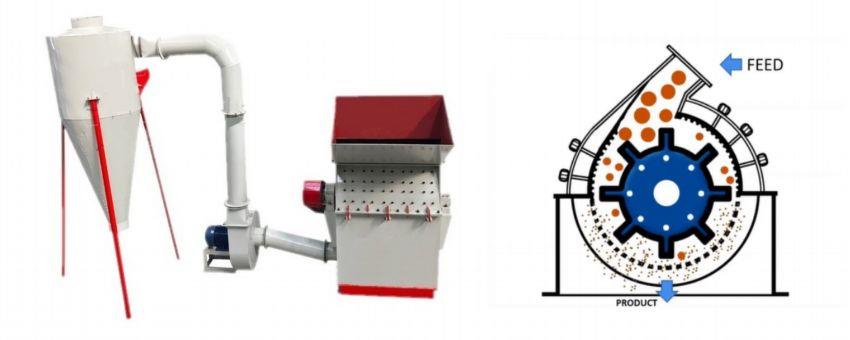

Wood hammer mill adopt hammer blade incising and airflow impacting in one process, when it works, rotor with high speed rotating, generate high speed airflow, flow along the blade incising direction, so the raw materials will be accelerated impacting and crushing repeatedly.So the hammer mill crush the raw materials into fine powder efficiently and evenly, the output size depends on the hole size of the screen around the blades, inside the hammer mill.

Features

1. To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.

2. Low investment and energy consumption,

3. High output

4. High-quality finished products

5. Easy to operate and maintain



Technical Parameter

Model	FS-500	FS-600	FS-800	FS-1000	FS-1300	FS-1500
Feeding Size(mm)	500*280	600*300	800*350	1000*450	1300*450	1500*450
Crushing chamber size(mm)	500*500	600*600	800*700	1000*800	1300*800	1500*800
No. of hammer(pcs)	30/20	40/30	50/30	66/48	72/54	90/72
Hammer size(mm)	180*60*10	180*60*10	230*60*10	230*60*10	230*60*10	230*60*10
Power(Kw)	22-30	30-37	37-45	55-75	75-90	90-110
Fan power(Kw)	without	without	7.5	11	15	15
Capacity (Kg/h)	500-800	800-1200	1500-2000	2000-3000	3000-4000	4000-6000



We can customize all kinds of high quality wood hammer mill according to your requirements.

Including diesel wood hammer, movable wood hammer, wood log wood chipper etc.

Warehouse	Machine Installation	New Painting

The benefits of our wood hammer mill

1.It is used for grinding of small wood blocks, chips before pelleting;

2.Multi grinding chamber to increase efficiency by 15%;

3.Multi grinding chamber to prolong service life of screen and beater;

4.Modified rotor to increase stability and avoid overheating from the bearing;

5.Modified screen locking device to make assembling &disassembling easily;

6.Unique structure design of door to absorb shake and reduce noise;

7.Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8.Depress barycenter of rotor to make more balanced and coarse and fine grinding can be completed easily.

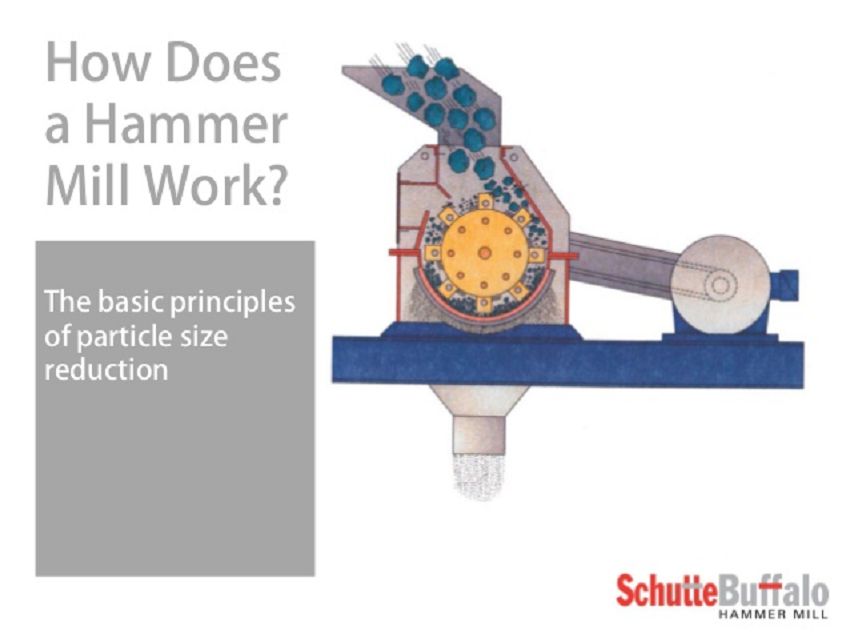

Work Principle

When raw materials enters into the wood hammer mill , grinded by the beat , fraction power from the high speed rotating hammers , then required power screened by the sieve .



Application

Wood crusher is ideal equipment for producing various types of wood products. Wood pellets or biomass briquettes production line also needs crushing equipment.

The final product can be used to make wood charcoal, animal bedding, also can used in paper making, edible mushroom industrial production.



Our Services

●After-sale service

We provide 12 months' warranty(After the warranty, we can provide life-long repair service).

●Customization

We make customized diesel engine crusher plastic machine.

●Design

We make a good mechanical design to ensure they can operate without any frictions, so that it can have a long service life.

If you have some special scenes in your mind, you can draw it down and we can produce the your pictures Also, we can make the movie scenes!

●Inspection

We have a strict Quality Inspection Department, and every machine would be tested before delivery.

We will serve you online in 24 hours!!! You can contact with me if you have any problems.
